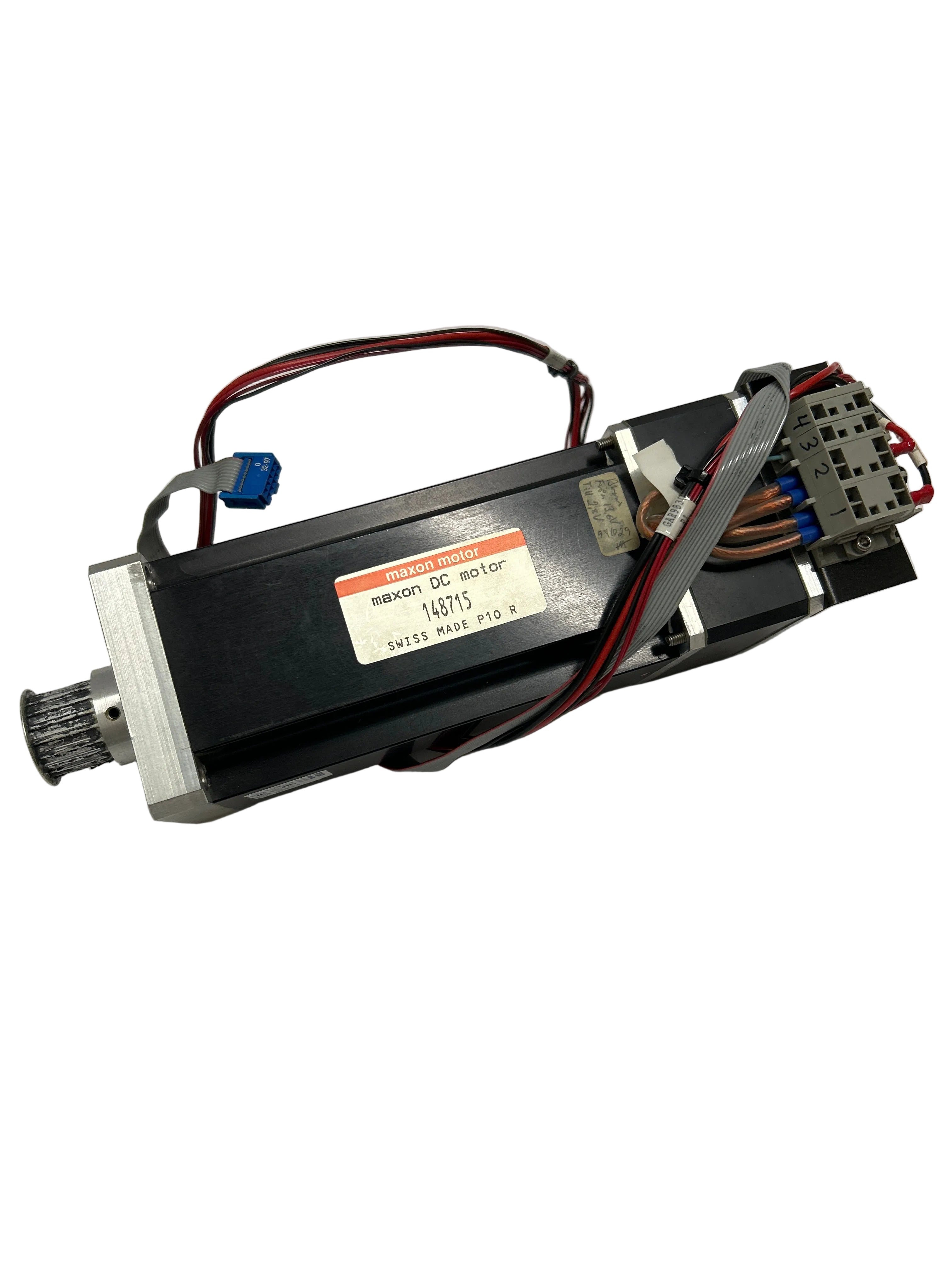

Mycronic TEX Tray Unit Tex Lift Motor-Encoder-Brake L-029-0395
This is a TEX (Tray Exchange) lift motor assembly with integrated encoder and brake used in MyData/Mycronic MY-series pick-and-place machines, providing the complete motorized lift drive system for the TEX tray exchanger's vertical tray lifting and positioning mechanism.
Key characteristics:
- Application: MyData/Mycronic MY-series pick-and-place machines equipped with the TEX tray exchanger system
- Function: Provides the complete vertical lift drive assembly for the TEX unit, combining three interdependent motion components into a single serviceable assembly:
- Lift Motor — drives the TEX unit's vertical lift mechanism, raising and lowering tray stacks or individual trays to present components at the correct pickup height for the placement head
- Encoder — provides real-time position feedback of the lift axis to the TEX control system for precise, closed-loop vertical positioning of trays at accurate and repeatable pickup heights
- Brake — holds the lift mechanism securely in position when the motor is not actively driving, preventing uncontrolled tray movement due to gravity or vibration and ensuring tray stability during component pickup
- Manufacturer: MyData/Mycronic (L-prefix indicates a Mycronic assembly-level part number)
- Part number: L-029-0395
- Type: TEX lift motor with encoder and brake assembly
- Category: Machine motion / tray feeder drive component
- Criticality: High — failure of any element of this assembly results in loss of TEX vertical lift control, preventing accurate tray height positioning and causing TEX system downtime
Assembly Component Roles:
| Component | Function |
|---|---|
| Lift Motor | Drives vertical tray lifting and lowering |
| Encoder | Closed-loop position feedback for precise lift height |
| Brake | Holds tray position when motor is inactive |
Signs of Lift Motor Assembly Degradation:
- TEX lift positioning errors or height faults
- Tray height inconsistency during component pickup
- Encoder feedback errors in machine software
- Brake hold failure causing tray drift when stationary
- Abnormal motor noise during TEX lift operations
