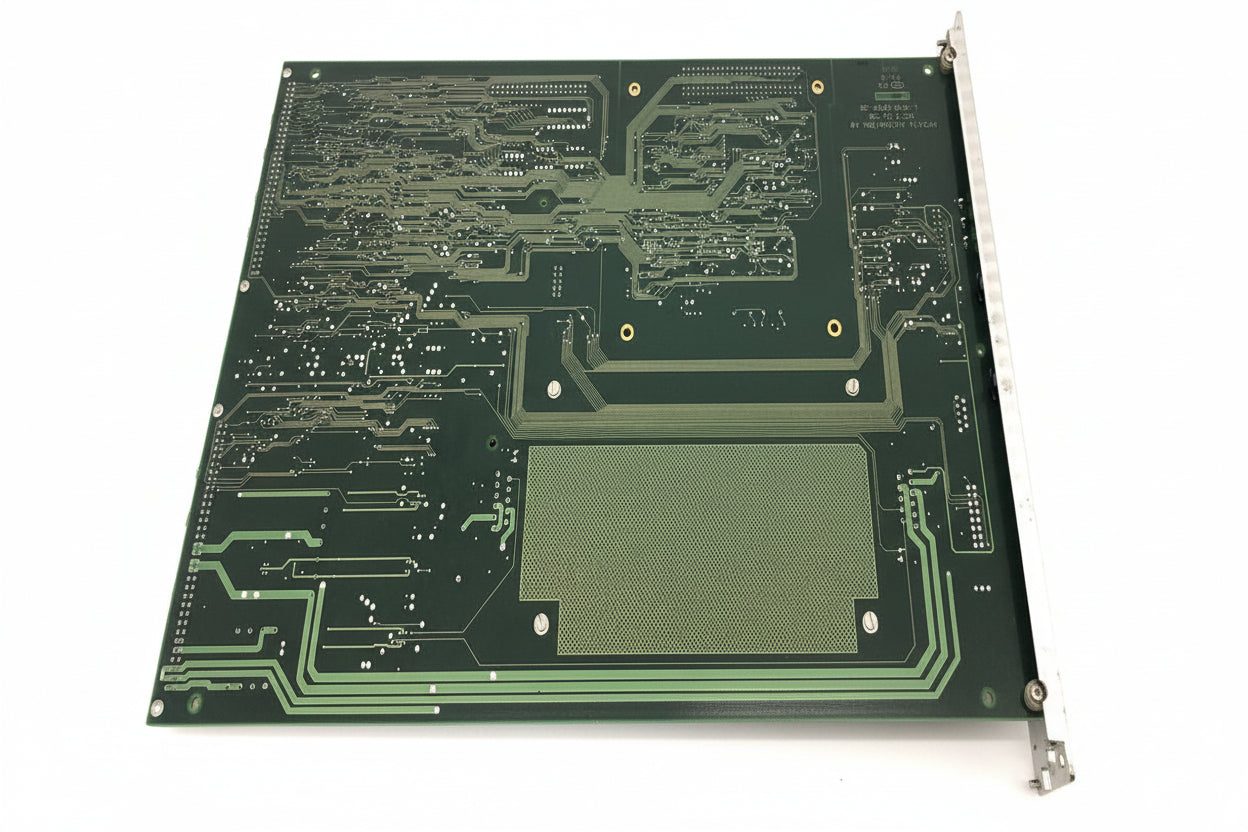

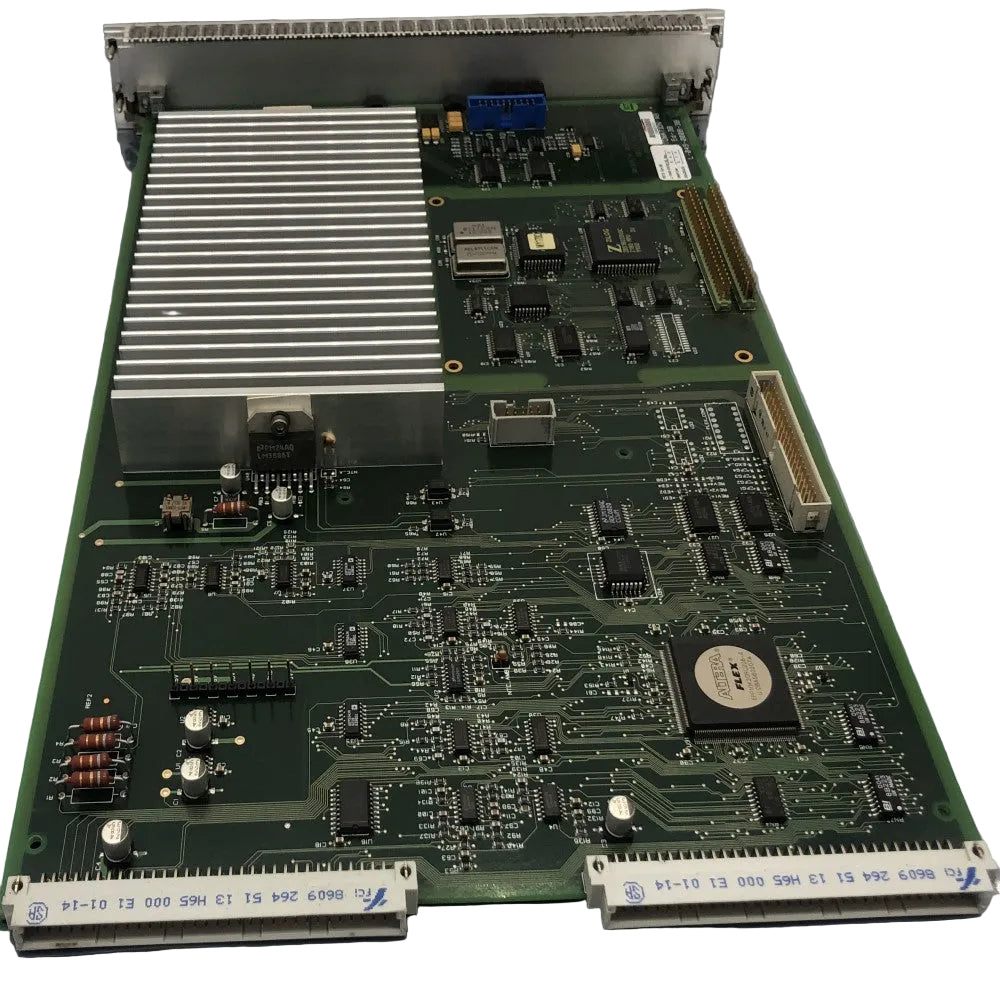

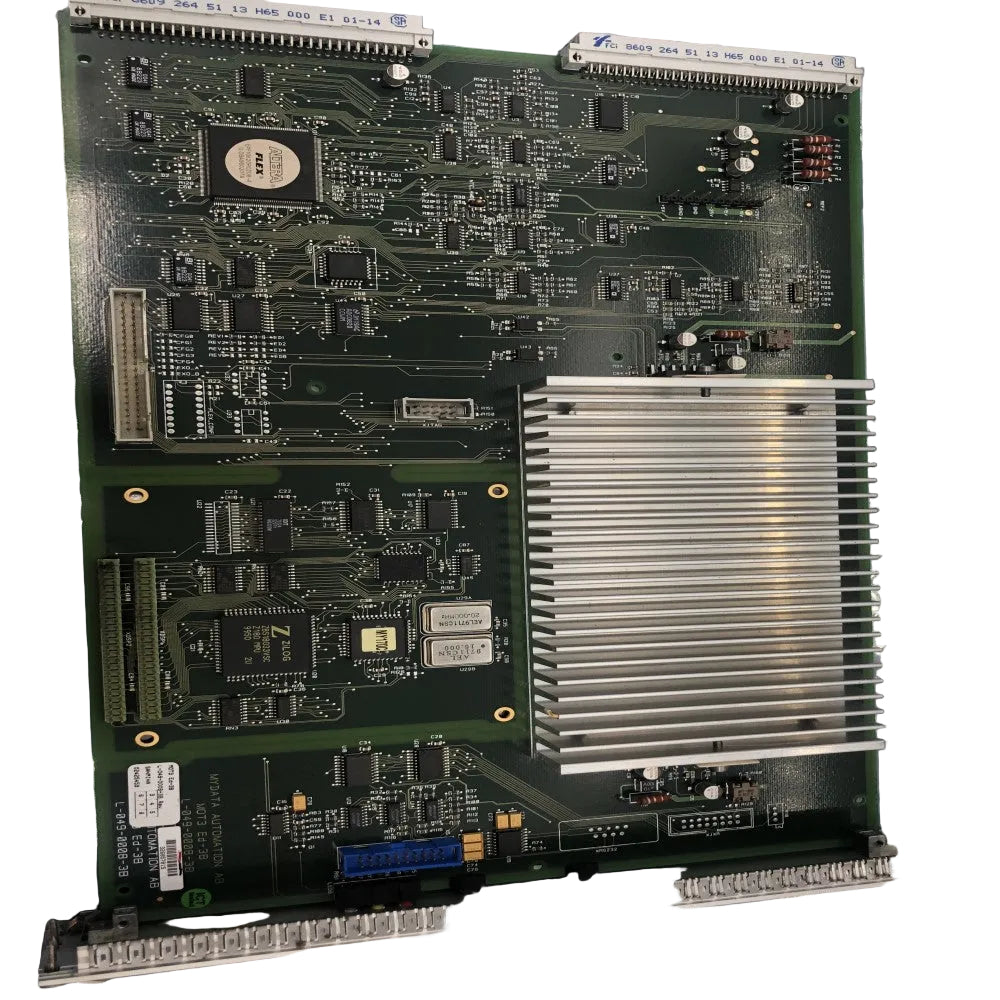

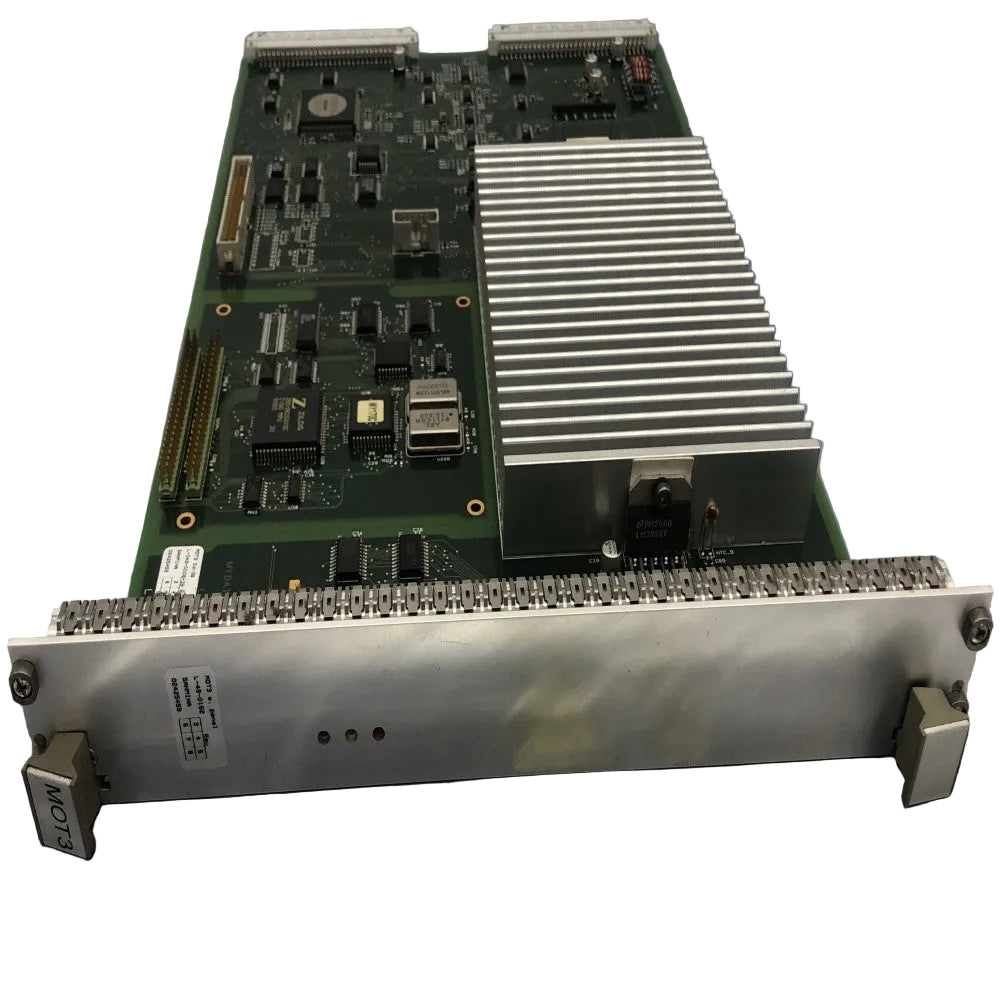

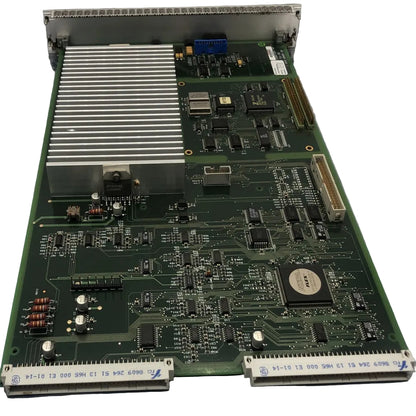

Mycronic MOT3 Ed-3B Board L-049-0008-3B
The Mycronic MOT3 Ed-3B Board L-049-0008-3B is a motion control electronics board used in Mycronic SMT pick-and-place machines. Here's what's generally known about this part:
Mycronic MOT3 Ed-3B Board L-049-0008-3B
This is a MOT3 (Motor Control) Edition 3B PCB assembly serving as a dedicated motion control board within the electronics rack of Mycronic MY-series pick-and-place machines. The MOT3 board is responsible for managing and coordinating motor drive signals and motion control functions for one or more machine axes, working in close conjunction with the MCB (Machine Control Board) and servo amplifier systems.
Key characteristics typically associated with this part:
- Application: Mycronic MY-series pick-and-place machines (specific compatibility dependent on machine generation, electronics rack configuration, and software version)
-
Function: Serves as a dedicated motion control interface board, handling the coordination and distribution of motion commands to the machine's motor drive systems; responsibilities typically include:
- Receiving high-level motion commands from the MCB
- Generating and distributing step/direction, PWM, or analog velocity signals to servo amplifiers or stepper drivers
- Managing encoder feedback signals from motors for closed-loop position control
- Coordinating multi-axis motion synchronization
- Handling motion-related I/O such as home sensors, limit switches, and position flags
- Providing real-time motion status and fault reporting back to the MCB
- Manufacturer: Mycronic (L-prefix indicates a Mycronic assembly-level part number)
- Part number: L-049-0008-3B (the "3B" suffix denotes Edition 3B, indicating a specific hardware revision with distinct firmware and compatibility requirements)
- Type: Motor/Motion Control PCB assembly
- Edition: 3B — a specific hardware revision that will have defined firmware version requirements and machine model compatibility; correct edition matching is essential when sourcing a replacement
- Contents: Likely includes motion controller ICs or FPGA/DSP, encoder interface circuitry, optoisolated I/O, bus communication interfaces (CAN, RS-422, or proprietary Mycronic bus), onboard memory, and multi-pin connectors for interfacing with the machine backplane and motor drive wiring harnesses
-
Interface: Connects to the machine's main electronics rack or backplane, interfacing with:
- MCB (Machine Control Board) via backplane or direct cable
- Servo amplifiers (such as Elmo drives) via signal cables
- Motor encoders for position feedback
- Home sensors and limit switches
- Criticality: A high-criticality component — failure of the MOT3 board typically results in loss of axis control, motion faults, or complete machine downtime; correct edition matching is essential for proper operation
MOT3 Ed-3B in the Mycronic Electronics Architecture: The MOT3 board sits within Mycronic's layered motion control architecture:
- Host PC → runs Mycronic placement software
- MCB (Machine Control Board) → main machine controller
- MOT3 Board → dedicated motion control interface
- Servo Amplifiers (Elmo) → axis drive execution
- Servo Motors → physical axis movement
Important Notes on Replacement: When replacing the MOT3 Ed-3B board, it is strongly recommended to:
- Verify edition and firmware compatibility with your machine's MCB version and installed software
- Confirm compatibility with the servo amplifier types installed in your machine
- Back up any machine-specific motion parameters or calibration data before replacement
- Engage Mycronic service support to ensure correct configuration, parameter loading, and motion tuning after installation
- Never mix incompatible board editions within the same electronics rack configuration
