Mydata Mycronic AT-CPU-2 PF2 w CP5 with (1) L-029-0533-3 BM4CB Ed-3, (1) L-019-0710 Mi. w L-019-1149

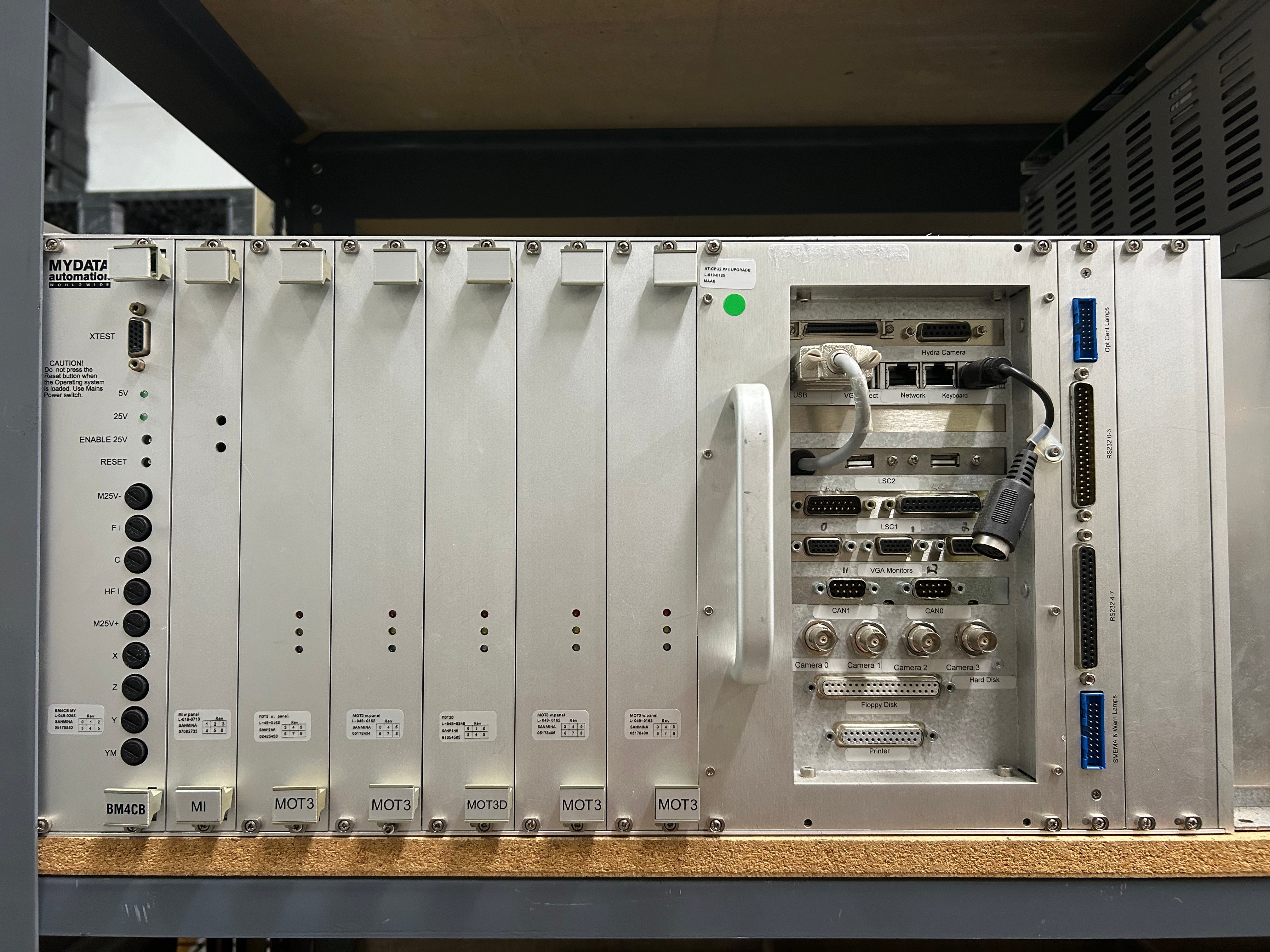

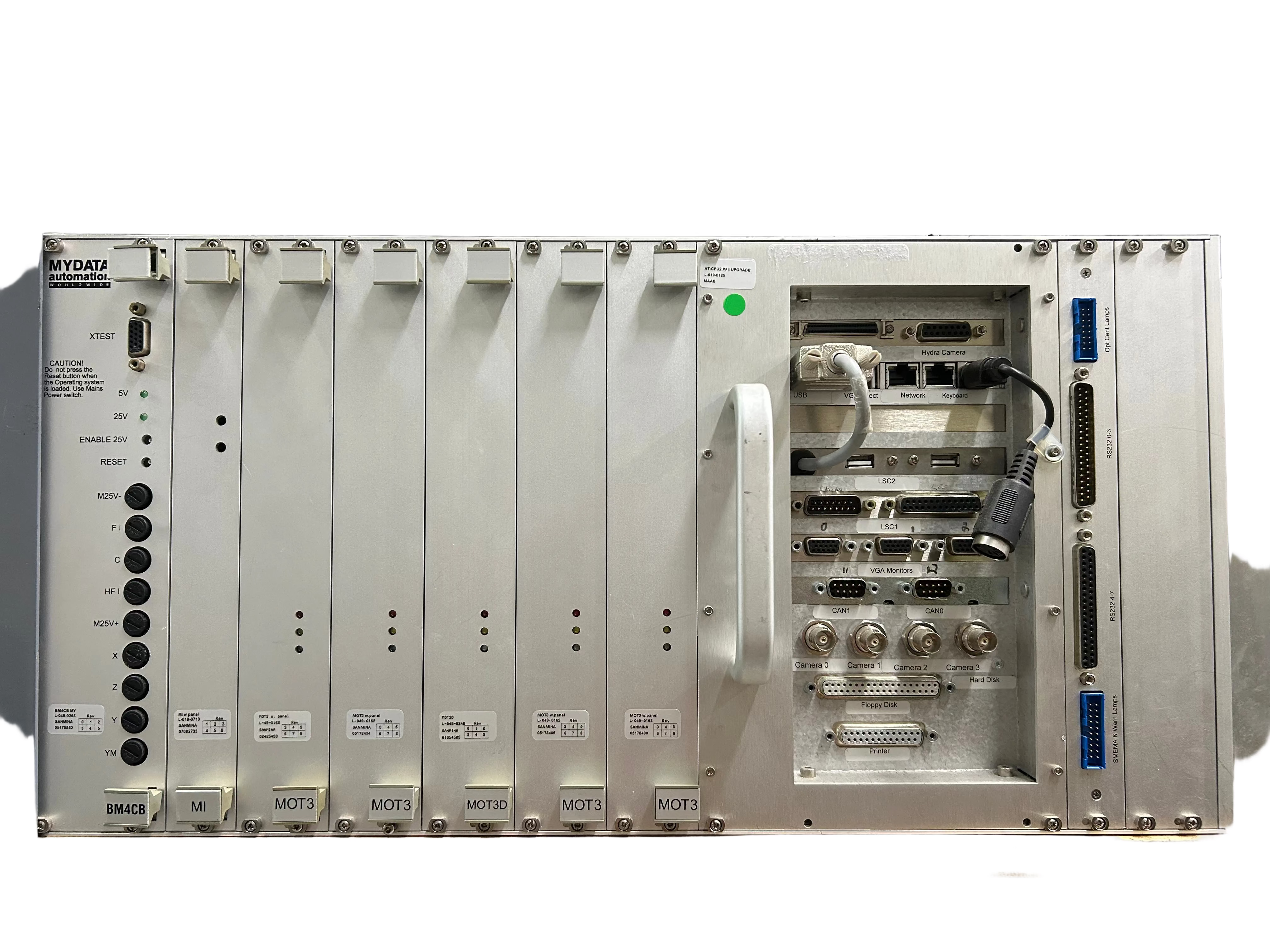

This is a complete AT-CPU-2 PF2 with CP5 processor unit assembly representing a fully configured main CPU and control chassis for MyData/Mycronic MY-series pick-and-place machines, populated with a specific set of control boards as a ready-to-install complete control system assembly.
Key characteristics:
- Application: MyData/Mycronic MY-series pick-and-place machines compatible with the AT-CPU-2 PF2 platform
- Function: Serves as the complete machine CPU and control system assembly, integrating the AT-CPU-2 PF2 chassis with CP5 processor and all included control boards into a single ready-to-install unit providing full machine control capability
- Manufacturer: MyData/Mycronic
- Type: Complete CPU chassis and control system assembly
- Category: Machine electronics / capital spare assembly
- Criticality: Extremely high — represents the complete central control system of the machine
Included Board Configuration:
| Qty | Part Number | Board | Function |
|---|---|---|---|
| 1 | L-029-0533-3 | BM4CB Ed-3 | Board management and conveyor control |
| 1 | L-019-0710 | MI with Front Panel | Magazine interface and feeder communication |
| 1 | L-019-1149 | — | Additional control board (function TBD by configuration) |
Assembly Components:
- AT-CPU-2 PF2 — main CPU chassis and backplane infrastructure
- CP5 Processor — central processing unit module providing machine computing and control processing power
- BM4CB Ed-3 — board management and conveyor control
- MI with Front Panel — magazine interface and feeder communication
- L-019-1149 — supplementary control board included in this configuration
Important Notes on Replacement:
- As a complete CPU assembly, all included board editions must be verified for compatibility with peripheral machine systems remaining in the machine
- Back up all machine-specific data including calibration files, axis parameters, vision calibration, and production programs before replacement
- CP5 processor configuration and software licensing must be verified for your specific machine serial number and software version
- Engage Mycronic factory-trained service engineers for installation and full machine recommissioning — this is a major service operation requiring complete machine recalibration and functional verification
