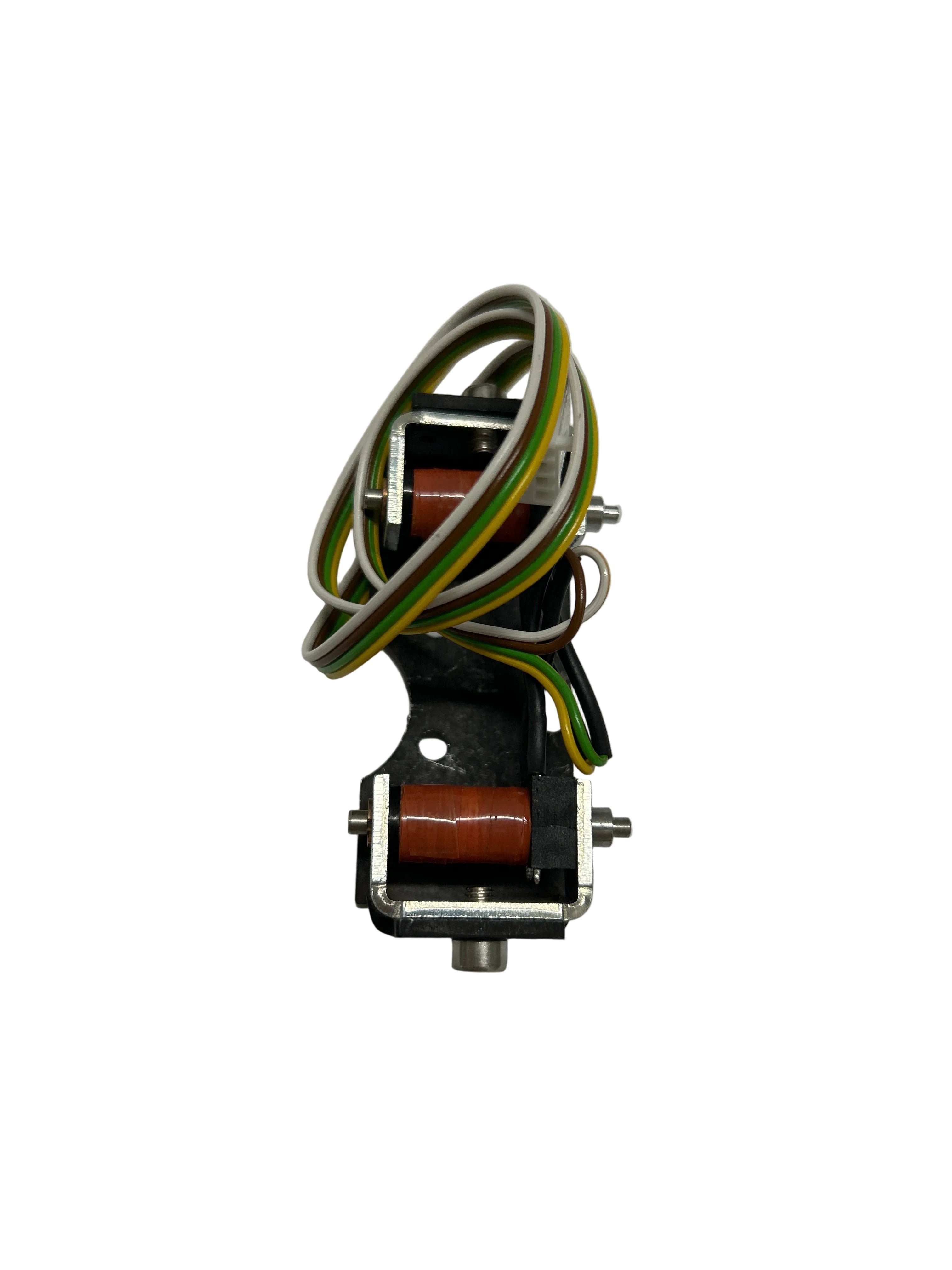

Mycronic Z Lock Unit L-022-0065B
This is a Z-axis lock unit assembly used in MyData/Mycronic MY-series pick-and-place machines, providing a dedicated mechanical or electromechanical locking mechanism for the Z-axis nozzle assembly to secure and hold the Z-axis position when required during machine operation or maintenance.
Key characteristics:
- Application: MyData/Mycronic MY-series pick-and-place machines
- Function: Serves as the Z-axis locking mechanism, providing:
- Positive mechanical locking of the Z-axis nozzle assembly in a defined position when the lock is engaged
- Prevention of uncontrolled Z-axis movement during tool changes, nozzle exchange, or maintenance operations
- Secure Z-axis position holding during ATE (Automatic Tool Exchange) nozzle pickup and deposit sequences
- Protection of placement head components from unintended Z-axis motion during non-production states
- Controlled Z-axis release when lock is disengaged for normal placement operations
- Manufacturer: MyData/Mycronic (L-prefix indicates a Mycronic assembly-level part number)
- Part number: L-022-0065B ("B" suffix denotes a specific revision level)
- Type: Z-axis lock unit / Z-axis position locking assembly
- Category: Machine mechanical / placement head control component
- Criticality: High — failure of Z lock unit can result in uncontrolled Z-axis nozzle movement during tool exchange or maintenance causing tool damage or placement head injury risk
- Wear Item: Lock mechanism subject to wear and actuator degradation over time; regular inspection recommended
Signs of Z Lock Unit Degradation:
- Z-axis lock engagement or release failures
- Uncontrolled Z-axis movement during tool exchange sequences
- Z lock fault codes in machine software
- ATE nozzle exchange sequence errors related to Z lock timing
- Visible mechanical wear or damage to lock mechanism
