Mycronic Vacuum Tube with Z Sensor L-029-0199B

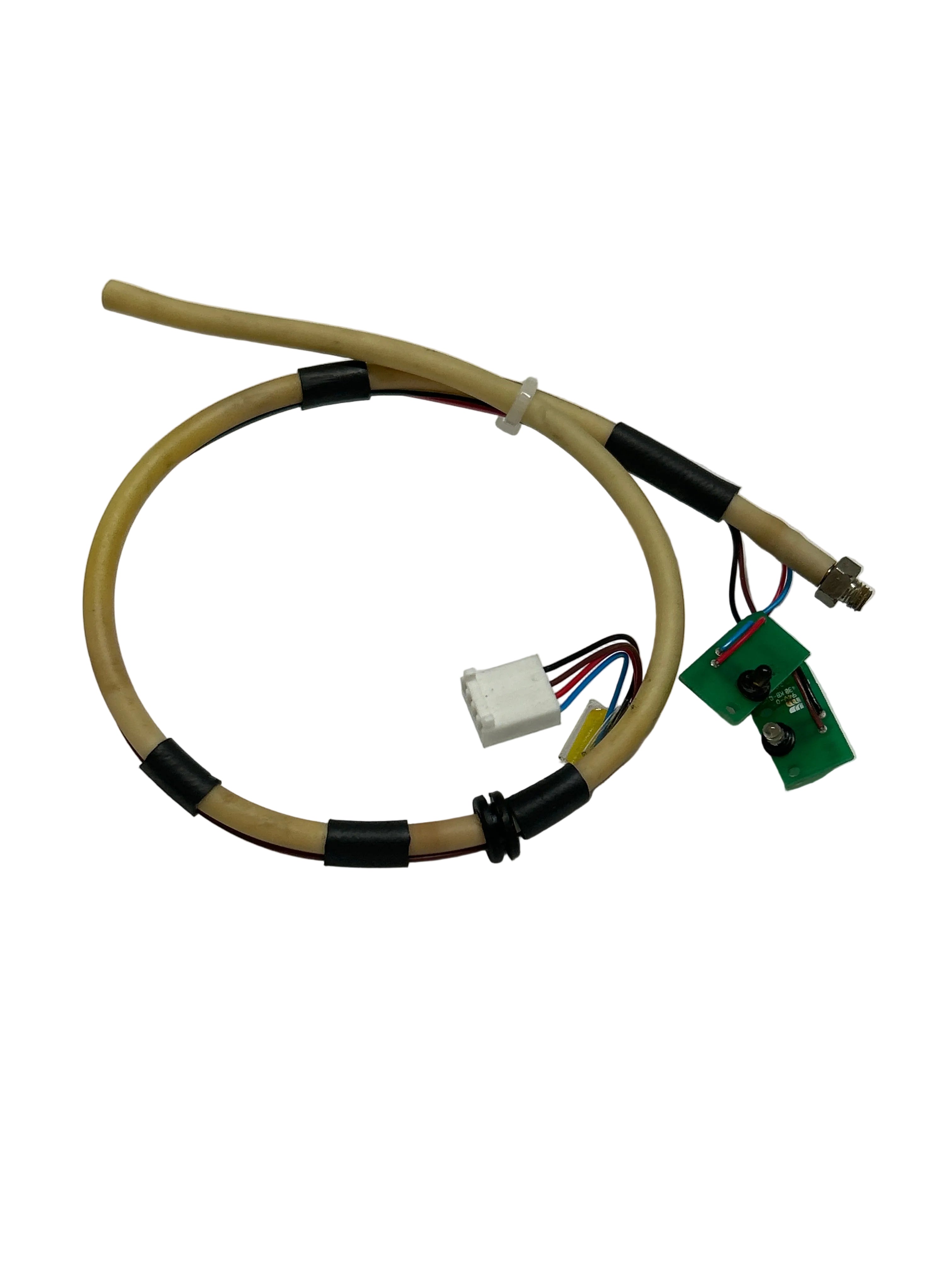

This is a vacuum tube assembly with integrated Z-axis sensor used in MyData/Mycronic MY-series pick-and-place machines, providing both the vacuum supply channel to the placement head nozzle and a Z-axis position sensing function within a single combined assembly.
Key characteristics:
- Application: MyData/Mycronic MY-series pick-and-place machines
- Function: Serves as a dual-function assembly combining two critical placement head functions:
- Vacuum Tube — provides the vacuum supply channel routing compressed vacuum from the solenoid valve system to the placement head nozzle tip for component pickup and hold during placement cycles
- Z Sensor — provides integrated Z-axis position detection feedback confirming nozzle Z-axis position, component pickup confirmation, or nozzle contact detection during pickup and placement operations; enabling:
- Component pickup verification by detecting nozzle Z position change upon component contact
- Placement confirmation by detecting controlled nozzle compression at placement height
- Z-axis position feedback for precise nozzle depth control
- Manufacturer: MyData/Mycronic (L-prefix indicates a Mycronic assembly-level part number)
- Part number: L-029-0199B ("B" suffix denotes a specific revision level)
- Type: Combined vacuum tube and Z-axis sensor assembly
- Category: Machine pneumatic / placement head sensor component
- Criticality: High — failure affects both vacuum supply integrity and Z-axis position sensing causing pickup failures or placement depth errors
- Wear Item: Vacuum tubes and sensor assemblies subject to wear, seal degradation, and sensor fatigue over time; regular inspection recommended
Signs of Assembly Degradation:
- Reduced vacuum levels at nozzle tip
- Z-axis position detection errors or missed pickup confirmations
- Component pickup failures or placement depth inconsistency
- Vacuum leakage from tube assembly
- Z sensor fault codes in machine software
