Mycronic XWB3 ED-3B X Wagon Board L-029-0276-3B
Mycronic XWB3 ED-3B X Wagon Board L-029-0276-3B

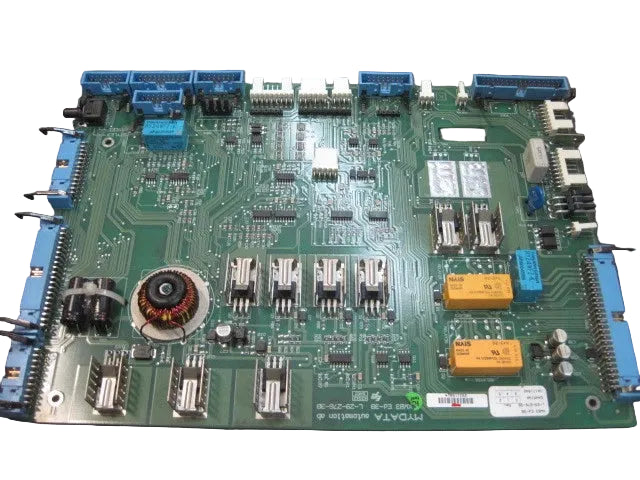

This is an XWB3 (X Wagon Board 3) Edition 3B PCB assembly serving as the dedicated electronics control board mounted on or associated with the X-axis wagon (beam carriage) of Mycronic MY-series pick-and-place machines, providing local control and interface functions for all wagon-mounted components and subsystems.
Key characteristics:
- Application: Mycronic MY-series pick-and-place machines
- Function: Serves as the dedicated X wagon electronics interface board, providing local control, signal distribution, and communication for all components mounted on or connected to the X-axis wagon; responsibilities typically include:
- Interfacing and distributing control signals to wagon-mounted placement head motors and actuators
- Managing vacuum valve control signals for nozzle pickup and release
- Receiving and distributing encoder and position feedback signals from wagon-mounted transducers
- Interfacing with the X wagon camera vision system
- Managing wagon-mounted sensor inputs including nozzle presence, component detection, and head position sensors
- Providing local signal conditioning and buffering for wagon-mounted electronics
- Communicating with the main machine electronics rack via drag chain cable harness
- Manufacturer: Mycronic (L-prefix indicates a Mycronic assembly-level part number)
- Part number: L-029-0276-3B ("3B" denotes Edition 3B)
- Type: X wagon electronics interface PCB assembly
- Edition: 3B — specific hardware revision with defined firmware and compatibility requirements
- Category: Machine electronics / motion system component
- Criticality: High — failure of the XWB3 board typically results in loss of placement head control, vision system communication, or wagon-mounted sensor feedback, causing machine downtime
XWB3 in the Mycronic Electronics Architecture:
| Layer | Component | Function |
|---|---|---|
| Machine Control | MCB | Central machine controller |
| Motion Control | MOT3 Board | Axis motion coordination |
| Wagon Control | XWB3 Board | Local X wagon electronics interface |
| Execution | Head motors, valves, sensors | Physical placement operations |
Important Notes on Replacement:
- Edition matching is critical — verify Ed-3B compatibility with MCB and MOT3 board versions
- Drag chain cable harness connections should be inspected during replacement
- Full wagon functional verification including vision, vacuum, and head motion required after installation
- Engage Mycronic service support for post-installation configuration and verification
Pairs well with
60-Day Warranty
Tested & Calibrated
Support Available
Fast Shipping Options
