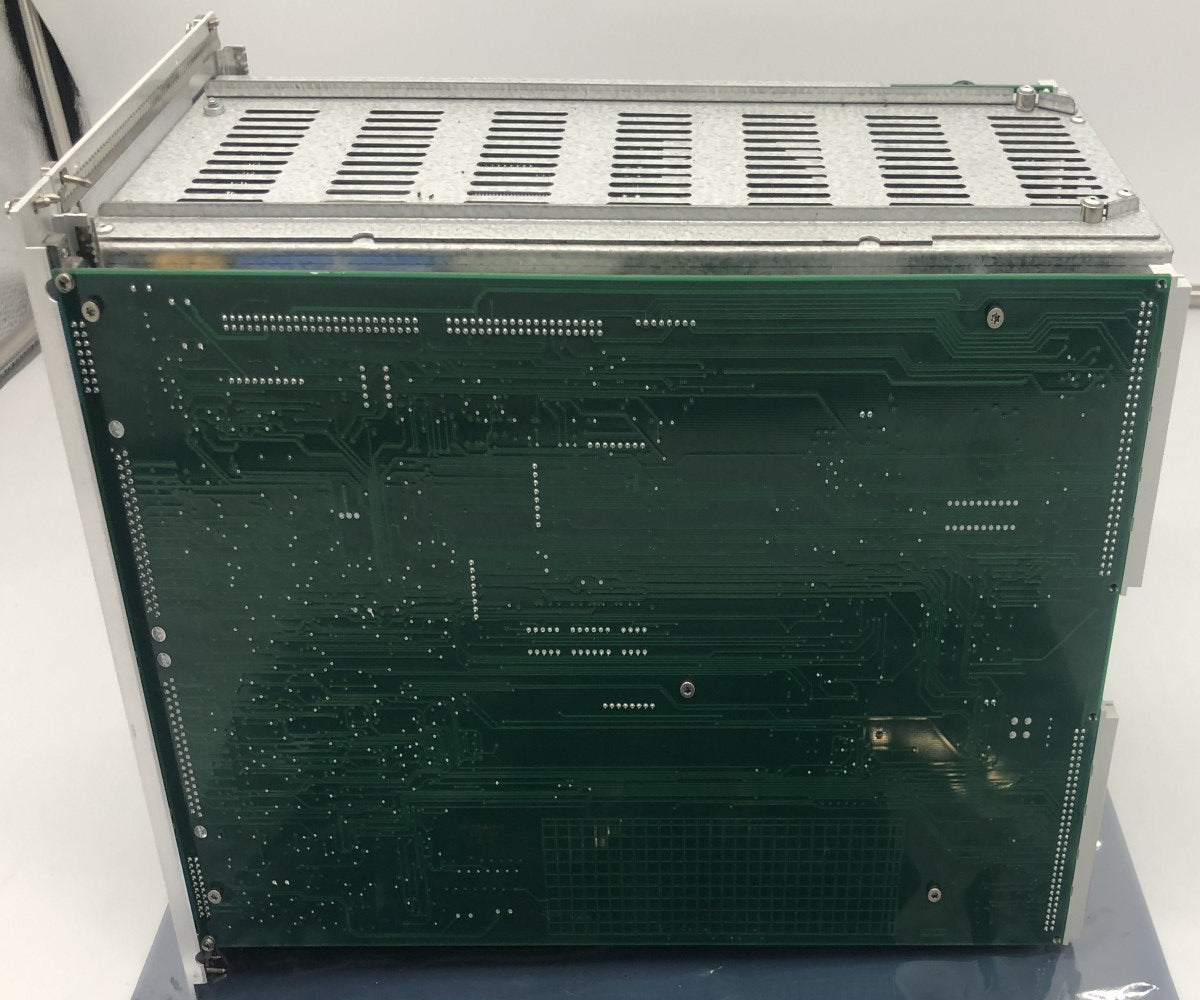

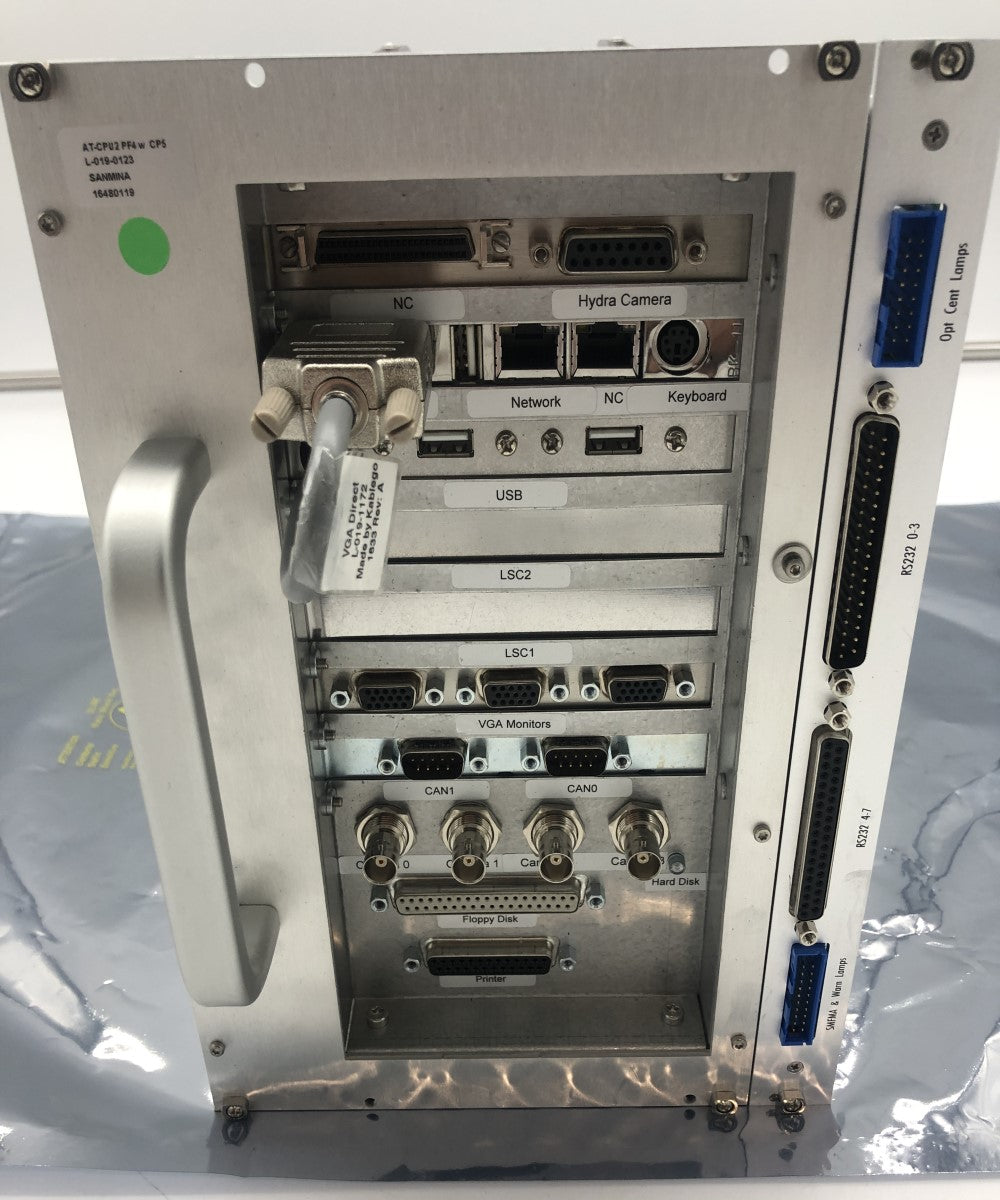

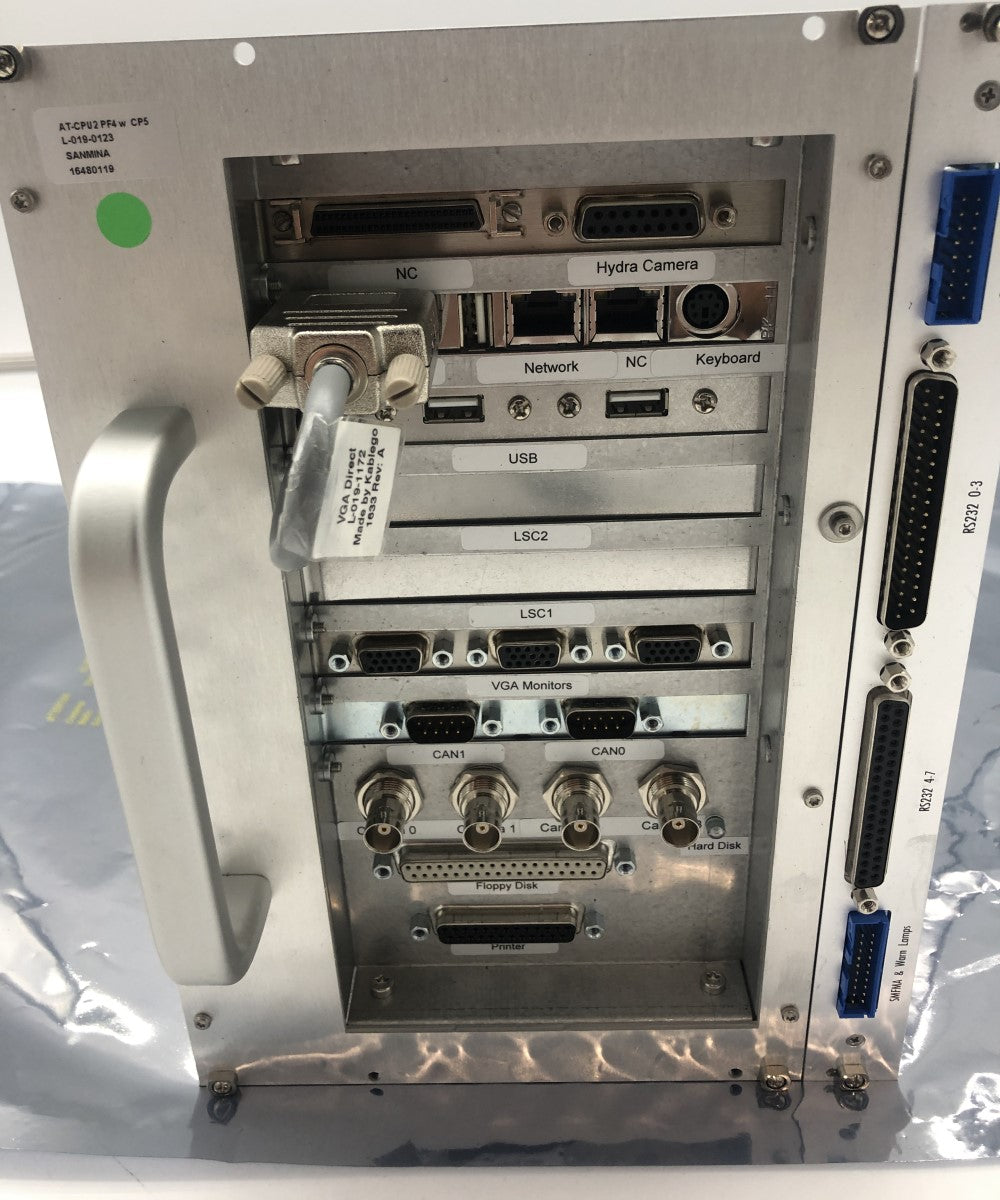

Mycronic My9 CPU Chassis Complete L-019-0123

The Mycronic MY9 CPU Chassis Complete L-019-0123 is the main electronics housing and control system assembly for the Mycronic MY9 pick-and-place machine. Here's what's generally known about this part:

Mycronic MY9 CPU Chassis Complete L-019-0123

This is the complete CPU chassis assembly for the Mycronic MY9 pick-and-place machine, representing one of the most comprehensive and critical spare assemblies available for this platform. As a "complete" assembly, this part encompasses the entire main electronics enclosure along with its populated boards, power supplies, and interconnecting hardware — essentially the central nervous system of the MY9 machine.

Key characteristics typically associated with this part:

• Application: Mycronic MY9 pick-and-place machine specifically
• Function: Houses and integrates all core machine control electronics into a single chassis assembly, providing:
  • Centralized mounting and interconnection of all primary control boards
  • Structured backplane or card cage for organized board installation
  • Integrated power distribution to all housed electronics
  • Coordinated communication between all control subsystems
  • Physical protection and EMI shielding for sensitive electronics

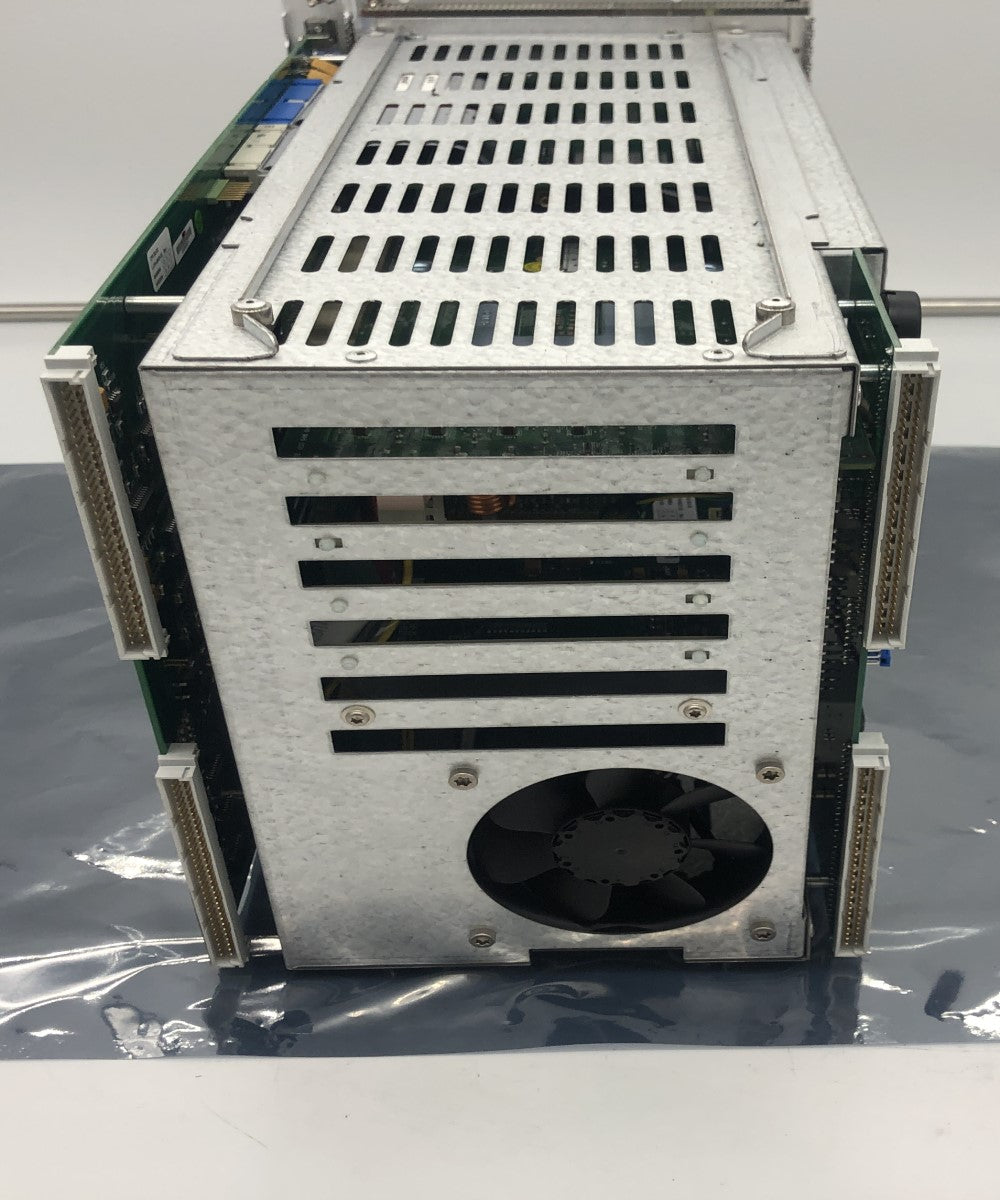

  • Cooling infrastructure (fans, ducting, airflow management) for thermal management of housed electronics
• Manufacturer: Mycronic (L-prefix indicates a Mycronic assembly-level part number)

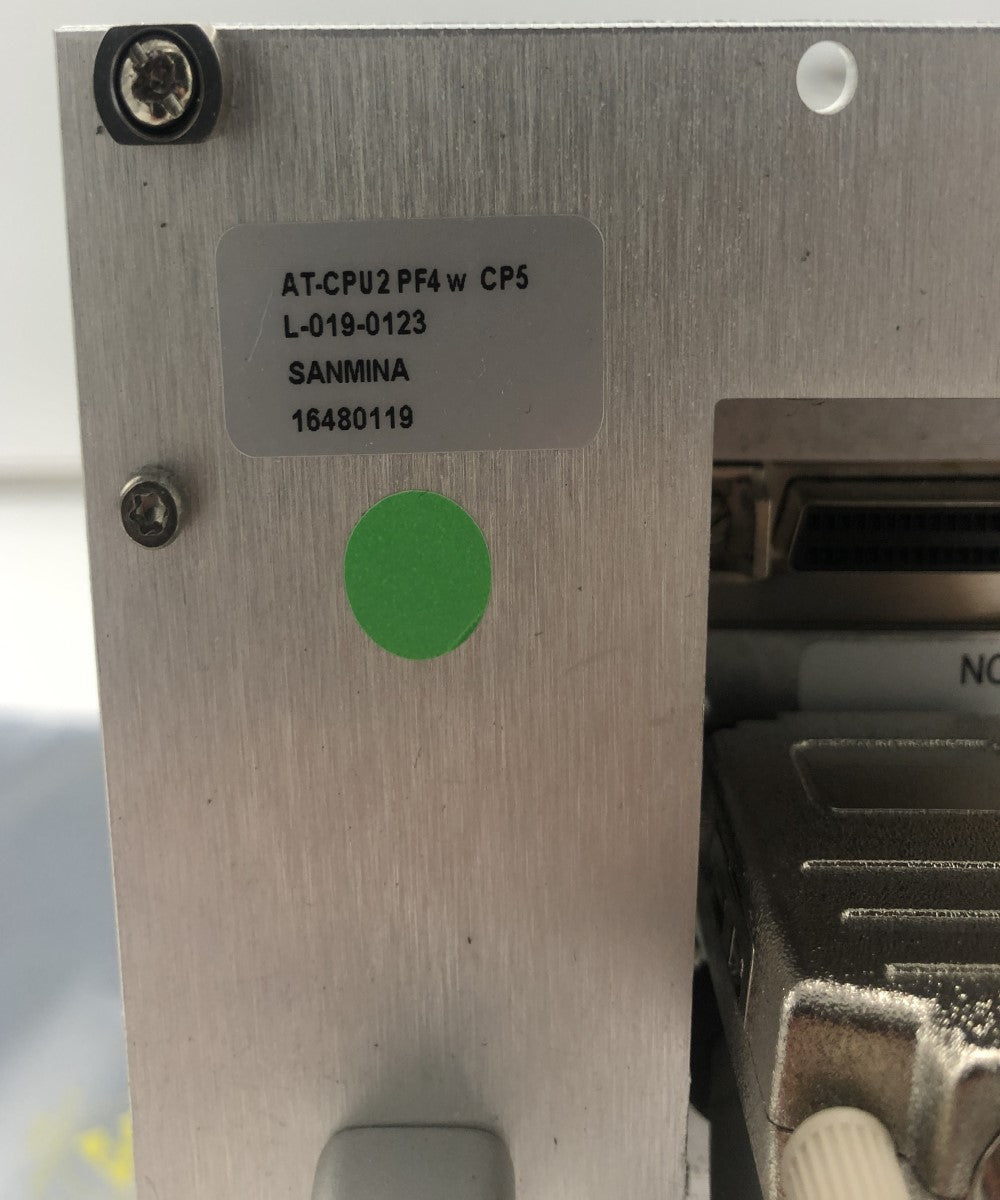

• Part number: L-019-0123
• Type: Complete CPU chassis assembly / main electronics enclosure
• Designation: "Complete" indicates this is a fully populated and integrated assembly, not just the chassis enclosure alone

Typical Contents of a Complete CPU Chassis: As a complete assembly for the MY9, this chassis would typically include some or all of the following populated and integrated components:

• MCB (Machine Control Board) — main machine controller
• MOT3 Board — motion control interface
• MI (Magazine Interface) Board — feeder/magazine communication
• I/O Boards — general purpose input/output control
• Power Supply Units — regulated DC power for all housed electronics
• Backplane or Card Cage — structural and electrical interconnection of all boards
• CPU/Host Computer Module — machine PC or embedded computing module (MY9 generation dependent)
• Communication interfaces — Ethernet, CAN bus, or proprietary bus interfaces
• Cooling fans and thermal management hardware
• Internal wiring harnesses and interconnecting cables

MY9 Platform Context: The Mycronic MY9 is a mid-range MY-series pick-and-place machine featuring:

• Hydra and/or Midas placement head compatibility
• LM8 magazine feeder system support
• High-accuracy vision system integration
• Flexible component handling from 0201 passives to larger ICs

The CPU chassis is the heart of the MY9's control architecture, and sourcing it as a complete assembly offers significant advantages in minimizing machine downtime during major electronics failures.

Important Notes on Replacement: When replacing the MY9 CPU Chassis Complete, it is strongly recommended to:

• Verify the complete assembly is configured for your specific MY9 software version and machine serial number
• Back up all machine-specific data including calibration files, axis parameters, vision calibration, and production programs before replacement
• Engage Mycronic factory-trained service engineers for installation and recommissioning — this is a major service operation requiring full machine recalibration and functional verification
• Confirm all board editions within the chassis are compatible with each other and with peripheral systems remaining in the machine
• Check licensing and software authorization requirements, as the CPU chassis may contain machine-specific license keys or hardware identifiers
