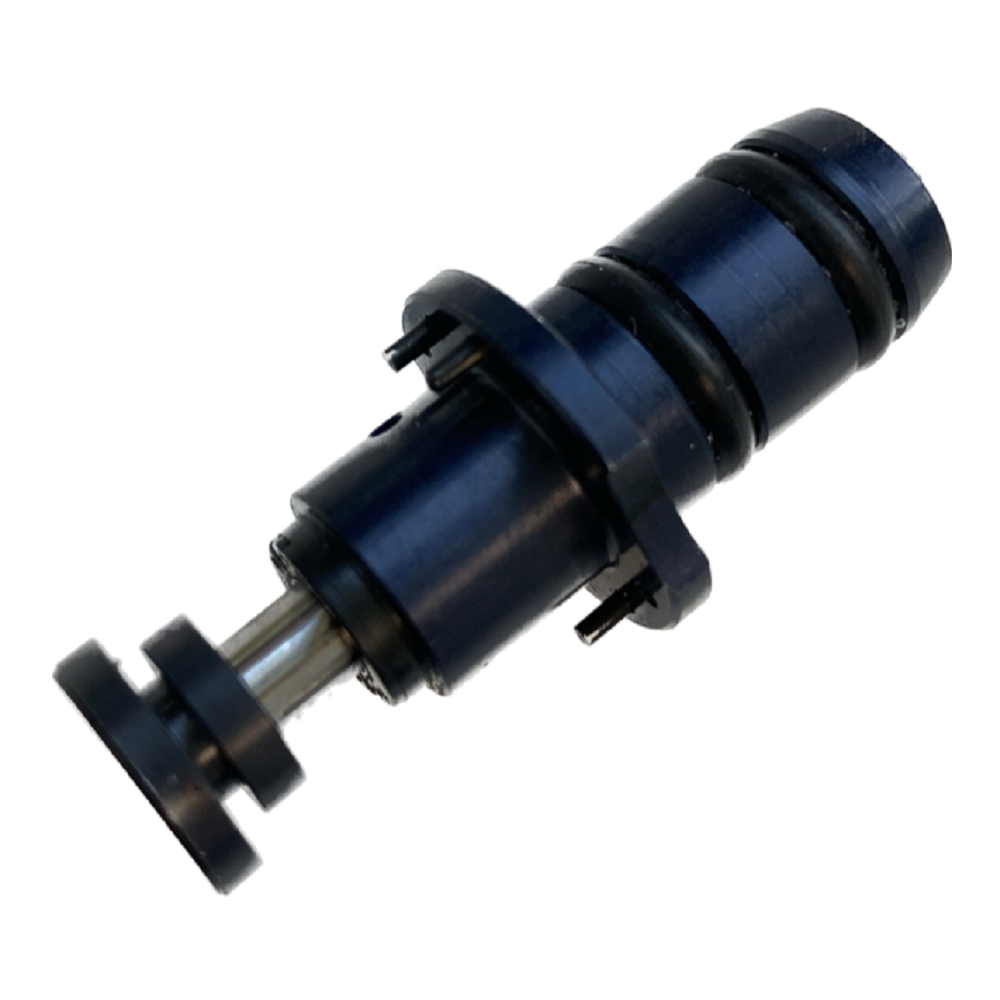

Mycronic Midas C23S Nozzle 8mm ID Spring Tool (Spring Suspended) L-012-0383C

The Mycronic Midas C23S Nozzle 8mm ID Spring Tool (Spring Suspended) L-012-0383C is a large format precision placement nozzle for the Mycronic Midas placement head. Here's what's generally known about this part:

Mycronic Midas C23S Nozzle 8mm ID Spring Tool (Spring Suspended) L-012-0383C

This is an 8mm inner diameter spring-suspended placement nozzle designated as the C23S nozzle type, designed for use with the Mycronic Midas placement head on MY-series pick-and-place machines. The large 8mm ID tip combined with the "S" spring-suspended designation makes this one of the larger nozzles in the Midas C-series range, purpose-built for handling large, heavy, or mechanically demanding SMT components that require both a broad vacuum contact area and sophisticated compliance control.

Key characteristics typically associated with this part:

• Application: Mycronic MY-series pick-and-place machines equipped with the Midas placement head
• Function: Uses vacuum suction through the 8mm ID tip to pick up large SMT components from feeders or trays and place them precisely onto PCB pads; the spring-suspended mechanism provides enhanced Z-axis compliance during placement, delivering controlled, consistent contact force across the large tip area to prevent component or PCB damage while accommodating board surface height variations
• Manufacturer: Mycronic (L-prefix indicates a Mycronic assembly-level part number)
• Part number: L-012-0383C (the "C" suffix denotes a specific revision level)
• Nozzle Type: C23S — the "C" series designation indicates this belongs to the higher-specification C-series nozzle family; the "23" indicates its position within the larger format C-series range; the "S" suffix designates the spring-suspended variant providing enhanced compliance
• Tip ID: 8mm inner diameter — one of the largest nozzle formats in the Midas tooling range, providing a very broad vacuum contact area for large component bodies
• Type: Spring-suspended nozzle / compliant placement nozzle assembly
• Construction: Typically comprises a precision-machined nozzle tip (ceramic or hardened steel) with a robust spring-suspended shank body engineered to handle the increased mechanical demands of larger, heavier components while maintaining vacuum integrity across the full 8mm contact area
• Spring Suspension Mechanism: Provides enhanced Z-axis compliance critical for large format components where:
  • Consistent force distribution across the broad 8mm contact area is essential
  • Component body fragility requires carefully controlled placement pressure
  • Board warpage or height variation demands greater compliance travel
  • Heavy component mass requires a more robust suspension system than standard spring tools provide

Important Notes on Use:

• The large 8mm tip requires robust and well-maintained machine vacuum system performance — any vacuum leakage or pressure drop will disproportionately affect pickup reliability at this tip size
• Spring suspension should be inspected regularly for fatigue, contamination, or mechanical wear — at large component weights, spring fatigue has a more significant impact on placement force consistency
• Tip face cleanliness is critical across the full 8mm surface — flux contamination, particulate, or surface damage across such a large contact area can cause uneven vacuum distribution and unreliable component pickup
• Placement program parameters (pickup height, placement speed, placement force, vacuum thresholds, vision parameters) should be carefully optimized for each large component type handled with this nozzle
• Always verify compatibility with your specific Midas head configuration and confirm the nozzle revision "C" is appropriate for your head version
• Given the high value of components typically handled by this nozzle size, maintaining spare C23S nozzles in inventory is strongly advisable
