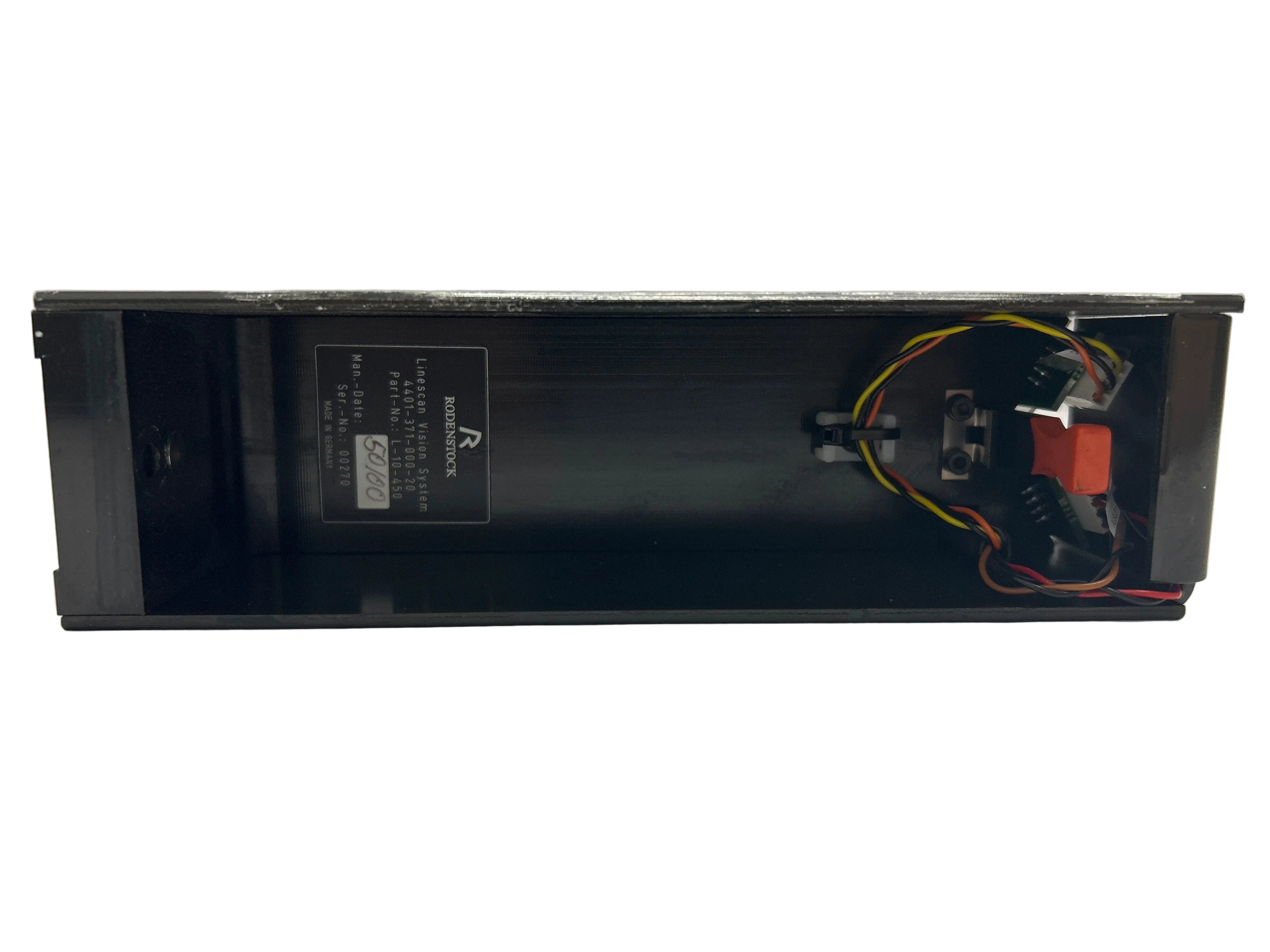

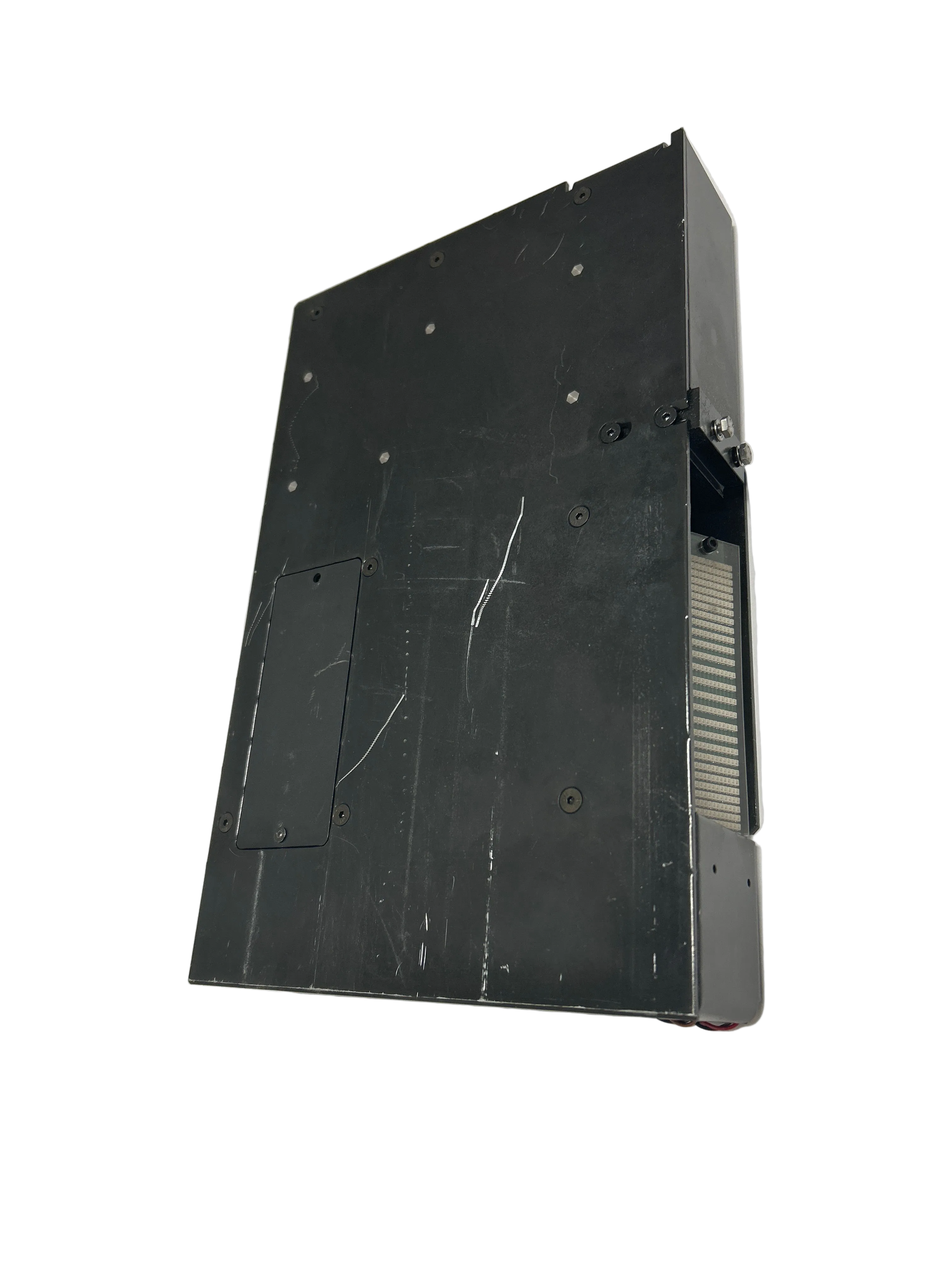

Mycronic Linescan Camera L-010-0450
This is a linescan vision camera assembly used in MyData/Mycronic MY-series pick-and-place machines, providing the dedicated linear array imaging sensor for the machine's linescan vision system used for high-speed component inspection and measurement during the placement process.
Key characteristics:
- Application: MyData/Mycronic MY-series pick-and-place machines equipped with a linescan vision system
- Function: Serves as the primary imaging sensor for the machine's linescan vision system, capturing high-resolution linear scan images of components as they pass through the camera's field of view; key functions include:
- High-speed component body and lead inspection during placement head motion
- Component dimension and geometry measurement for placement verification
- Lead coplanarity and pitch measurement for fine-pitch IC packages
- Component presence and orientation verification
- On-the-fly component inspection without stopping the placement head
- Providing vision data to the machine's image processing system for component accept/reject decisions
- Manufacturer: MyData/Mycronic (L-prefix indicates a Mycronic assembly-level part number)
- Part number: L-010-0450
- Type: Linescan vision camera assembly
- Sensor Type: Linear array CCD or CMOS image sensor — captures one line of pixels at a time as the component moves through the field of view, building a complete 2D image from sequential line scans
- Category: Machine vision / optical component
- Criticality: High — failure results in loss of linescan component inspection capability, potentially causing machine downtime or uninspected component placements
Linescan vs Area Camera:
| Feature | Linescan Camera (L-010-0450) | Area/Wagon Camera (L-012-0814) |
|---|---|---|
| Sensor Type | Linear array | Area array |
| Imaging Method | Sequential line scanning | Full frame capture |
| Primary Use | Component inspection on-the-fly | Fiducial recognition, board alignment |
| Speed | Very high | Standard |
Signs of Camera Degradation:
- Increased component inspection failures or false rejects
- Image quality degradation or line artifacts in scan images
- Vision system calibration drift or inconsistency
- Camera communication faults in machine software
