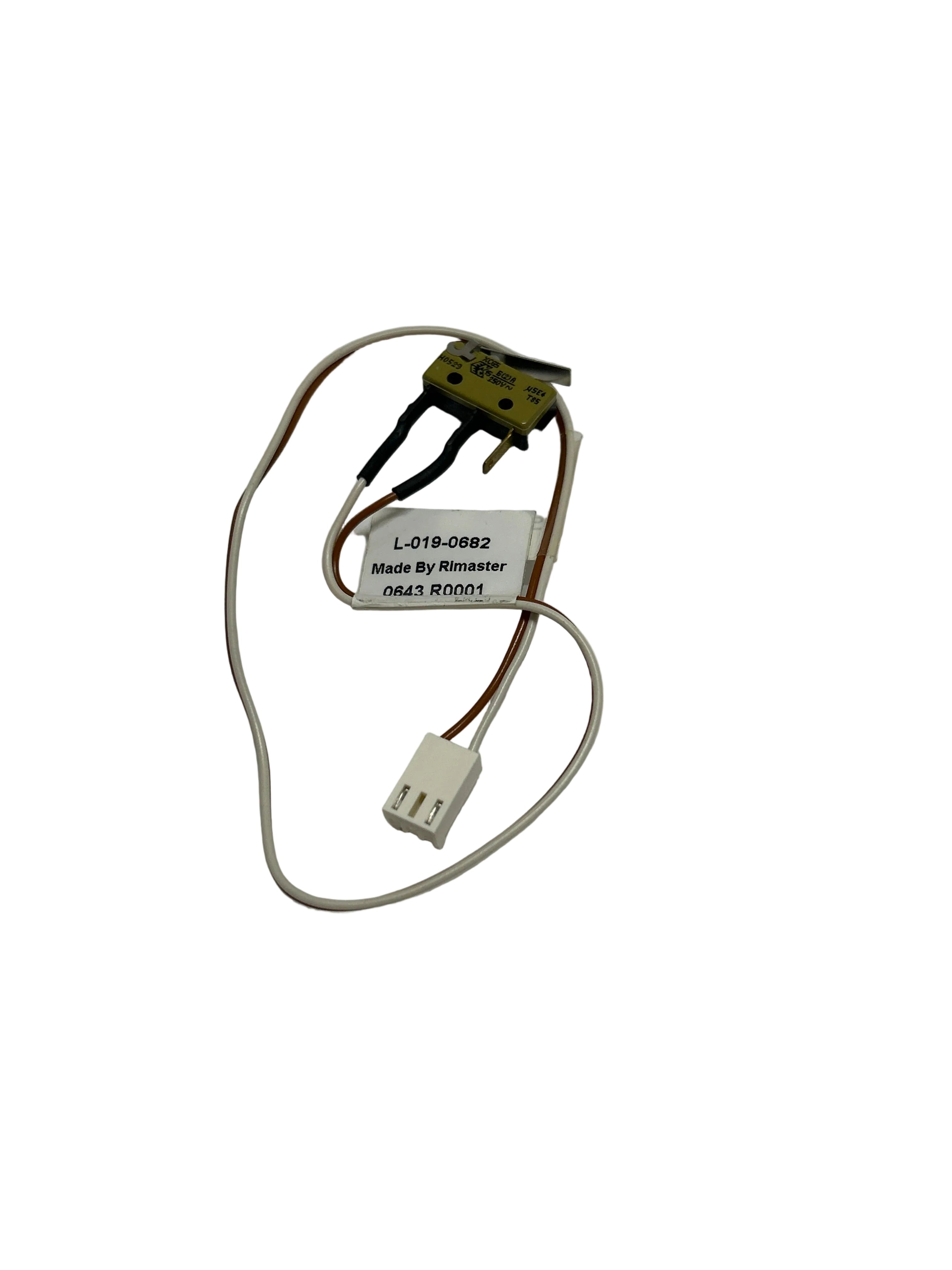

Mycronic End-positions Switch Front L-019-0682
This is a front end-position limit switch assembly used in MyData/Mycronic MY-series pick-and-place machines, providing a dedicated limit switch that detects and signals when a machine axis or mechanical assembly has reached its front end-of-travel position.
Key characteristics:
- Application: MyData/Mycronic MY-series pick-and-place machines
- Function: Serves as the front end-of-travel position limit switch, providing:
- Detection and signaling of axis or mechanical assembly arrival at the front end-of-travel limit position
- Hard limit protection preventing axis over-travel beyond the defined front mechanical boundary
- Home position reference signal for axis homing sequences during machine startup and calibration
- Safety interlock input to the machine control system inhibiting further motion in the front direction upon activation
- Protecting mechanical components from damage caused by axis over-travel at the front limit
- Manufacturer: MyData/Mycronic (L-prefix indicates a Mycronic assembly-level part number)
- Part number: L-019-0682
- Type: End-position limit switch assembly / front travel limit switch
- Category: Machine sensor / motion system safety component
- Criticality: High — failure of end-position switch removes hard limit protection risking mechanical damage from axis over-travel
End-Position Switch Configuration:
| Switch | Position | Function |
|---|---|---|
| Front (L-019-0682) | Front end of travel | Front limit detection and protection |
| Rear | Rear end of travel | Rear limit detection and protection |
Signs of Switch Degradation:
- Axis over-travel or mechanical collision at front limit
- Missing or intermittent front limit signal in machine software
- Axis homing sequence failures
- Front limit fault codes in machine software
