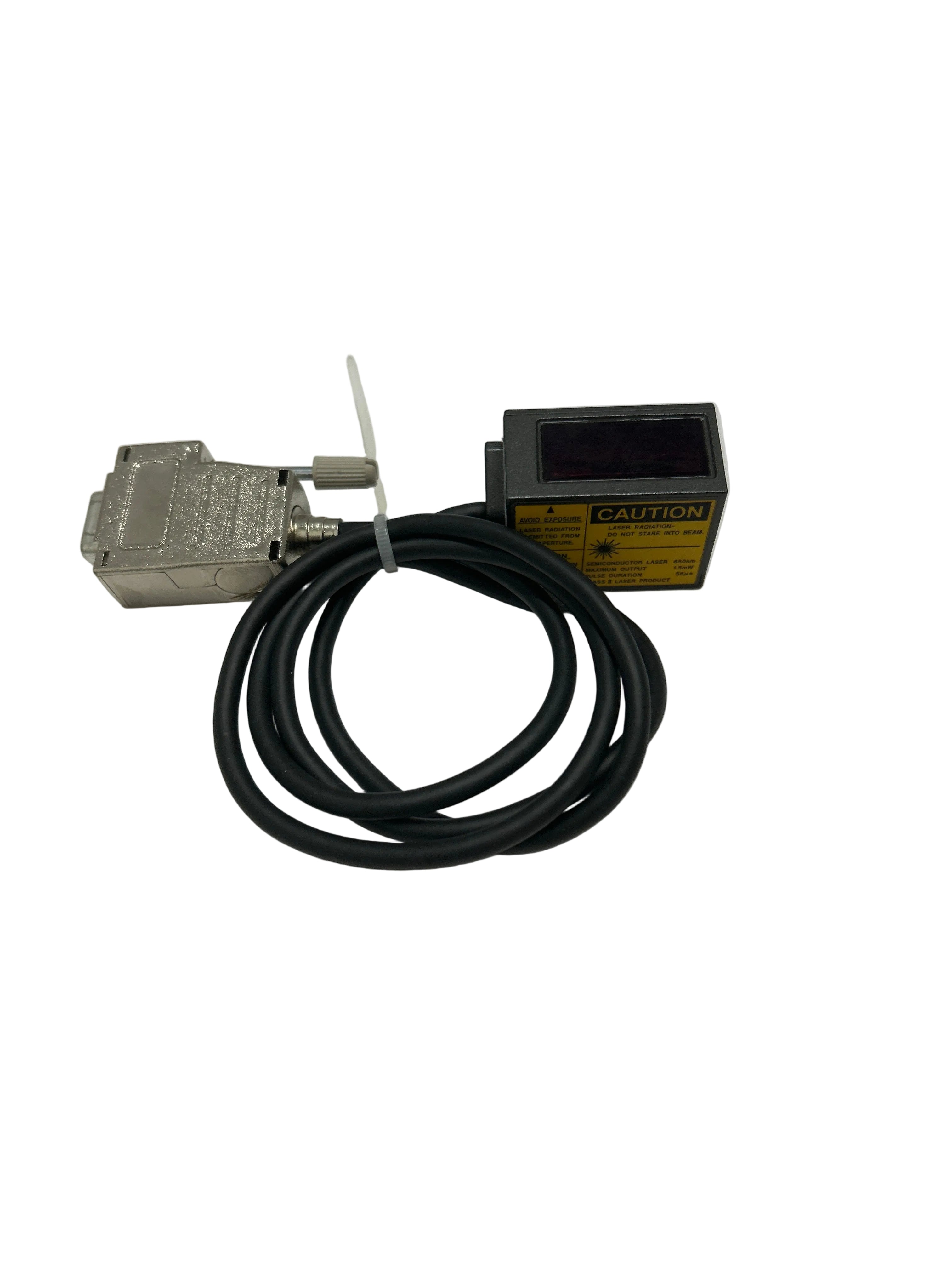

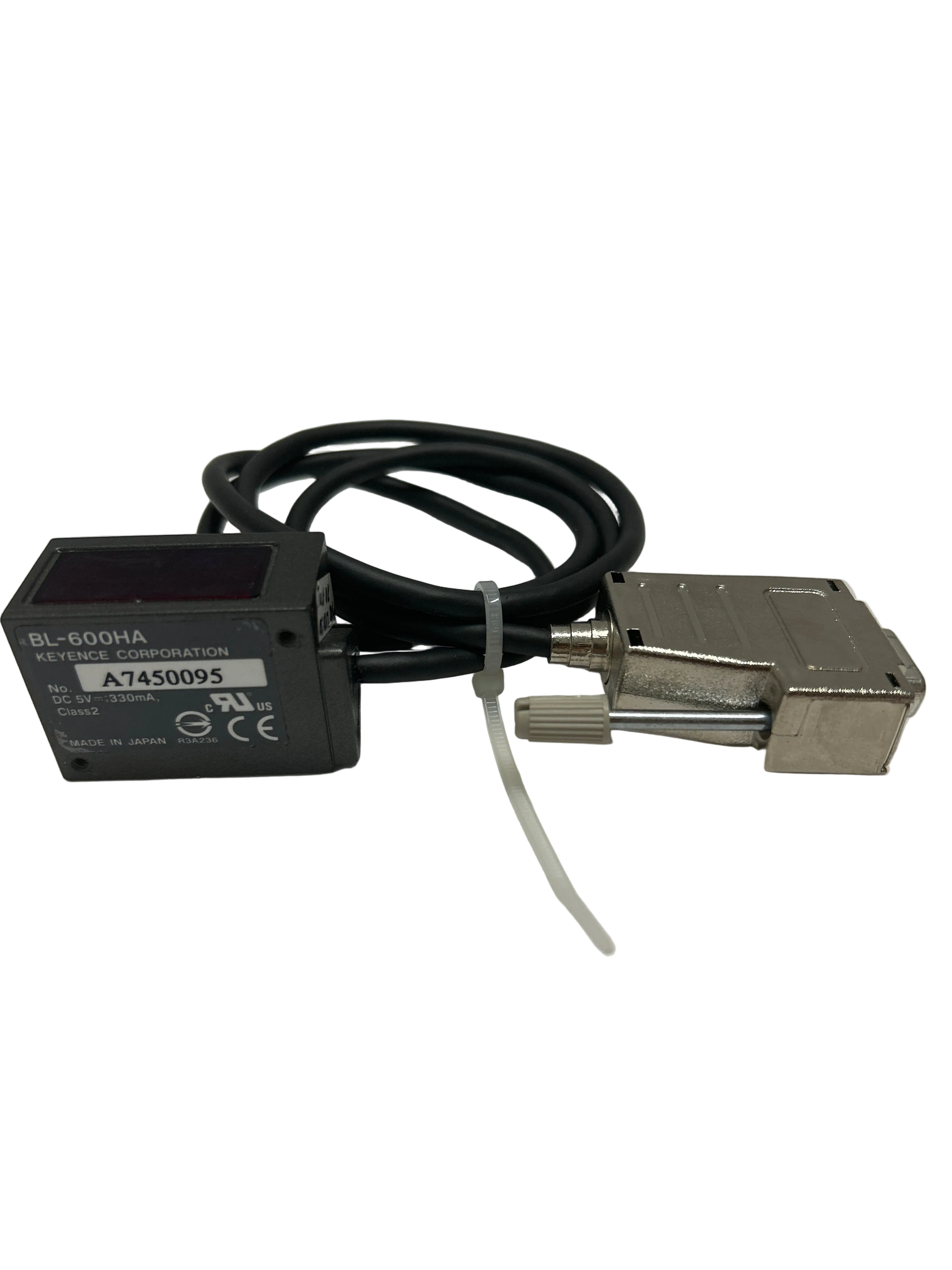

Mycronic Laser Scanner L-029-0548
This is a laser scanner assembly used in MyData/Mycronic MY-series pick-and-place machines, providing non-contact laser-based component scanning and measurement for high-speed, high-accuracy component inspection and verification during the placement process.
Key characteristics:
- Application: MyData/Mycronic MY-series pick-and-place machines equipped with laser scanning vision capability
- Function: Uses laser beam scanning technology to perform non-contact optical measurement and inspection of SMT components held by the placement head nozzle, providing:
- High-speed component body dimension measurement
- Component presence and pickup verification
- Lead coplanarity and pitch measurement for fine-pitch IC packages
- Component offset and rotation detection for placement correction
- On-the-fly component scanning during placement head motion without stopping
- Height profile measurement for component body and lead verification
- Manufacturer: MyData/Mycronic (L-prefix indicates a Mycronic assembly-level part number)
- Part number: L-029-0548
- Type: Laser scanner / non-contact optical measurement assembly
- Category: Machine vision / metrology component
- Criticality: High — failure results in loss of laser-based component inspection capability, potentially causing uninspected placements or machine downtime
Laser Scanner vs Linescan Camera:
| Feature | Laser Scanner (L-029-0548) | Linescan Camera (L-010-0450) |
|---|---|---|
| Technology | Laser beam scanning | Linear array imaging |
| Measurement | Height and dimension profiling | 2D optical imaging |
| Speed | Very high | Very high |
| Best For | Lead coplanarity, height profiling | Component body and lead imaging |
Signs of Laser Scanner Degradation:
- Increased component inspection failures or false rejects
- Laser measurement inconsistency or calibration drift
- Scanner communication faults in machine software
- Visible laser beam irregularities or power degradation
