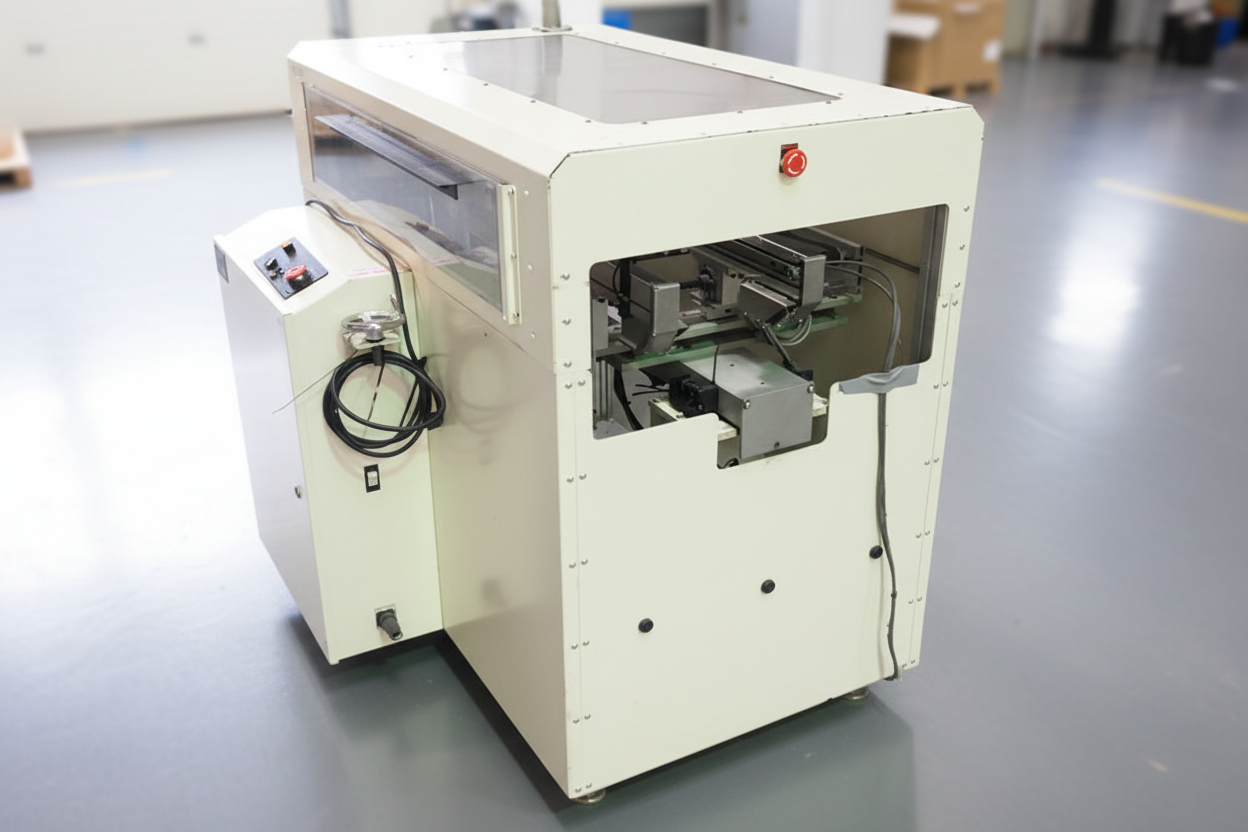

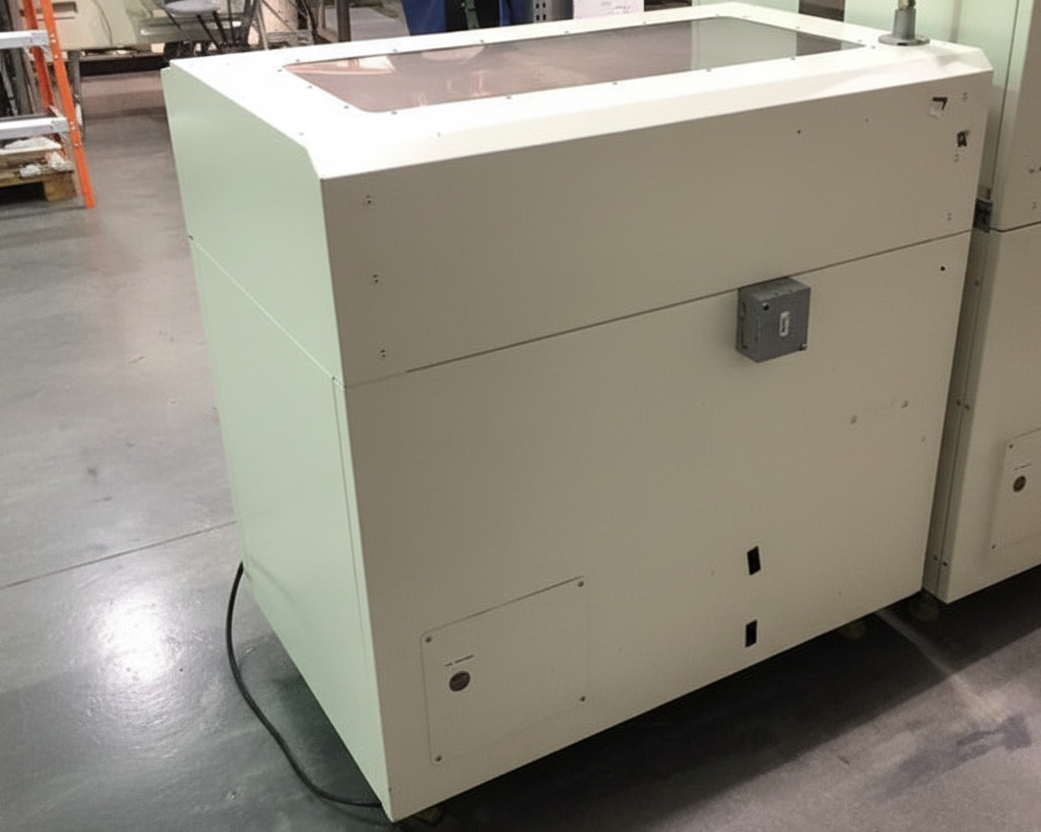

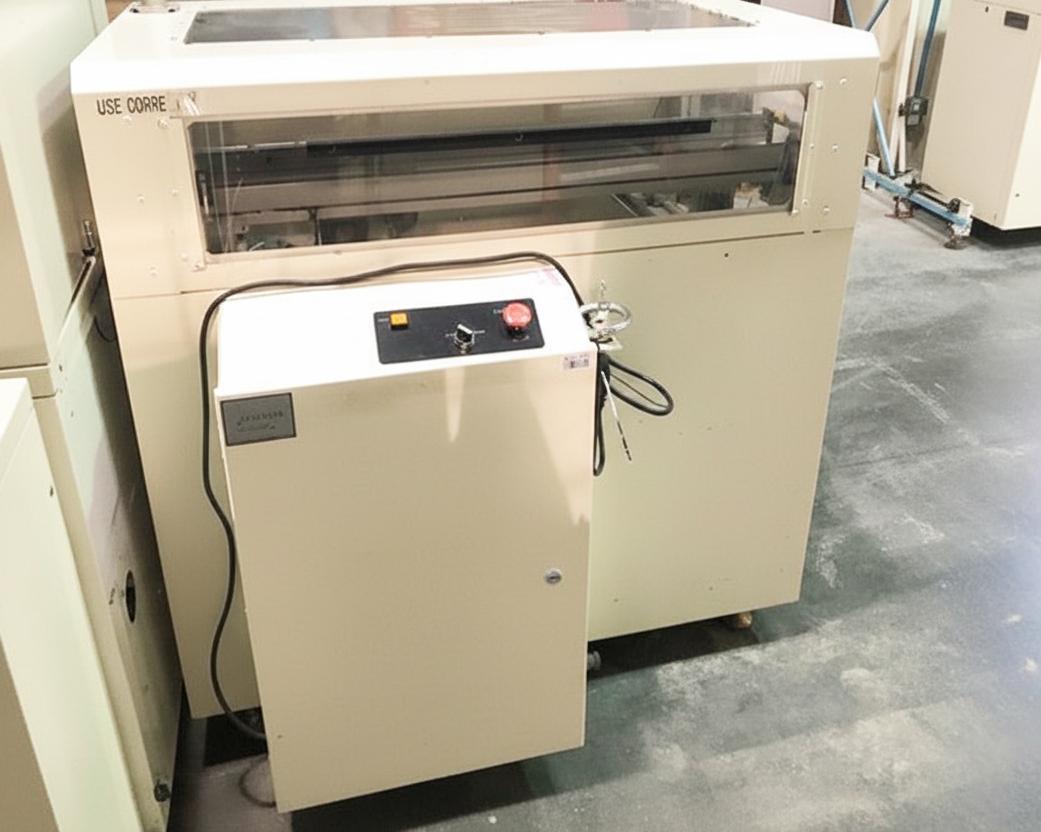

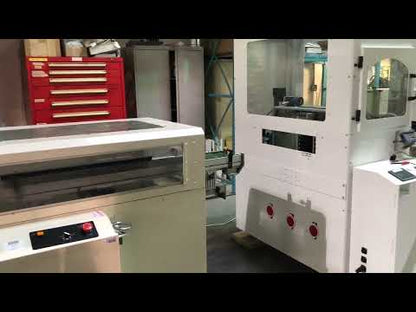

Conveyor Technologies SG-11 Shuttle Gate Conveyor
Manufacturer: Conveyor Technologies
Model: SG-11
Year: 2006
Type: Shuttle Gate / Pass-Through Conveyor
Condition: Used – Pulled from Working Environment
Availability: In Stock
Technical Specifications
Maximum Aisle Opening: Up to 34 inches
Board Edge Clearance: 3 mm
Width Adjustment Range: 2.0" – 16.0"
Controls: PLC
Interface: SMEMA Compatible
Frame Construction: Steel welded frame
Estimated Overall Length: Approximately 72–84 inches (1.8–2.1 meters)
Estimated Weight: Approximately 350–450 lbs
Product Description
The Conveyor Technologies SG-11 Shuttle Gate Conveyor is a reliable pass-through conveyor system designed to safely transfer PCBs between production line segments while allowing controlled operator access through the production aisle. This enclosed shuttle gate system integrates easily into SMT and electronics assembly environments and provides dependable board handling with built-in safety and status indication features.
Constructed with a durable welded steel frame and PLC-based controls with SMEMA compatibility, the SG-11 is well suited for production lines requiring safe operator passage without interrupting material flow. The adjustable width capability allows the system to accommodate a range of PCB sizes, making it a practical solution for flexible manufacturing operations.
This unit was removed from a fully operational production line and is complete and ready for integration into an existing SMT or electronics manufacturing line.
Key Features
- Shuttle gate / pass-through conveyor system
- PLC controls with SMEMA compatibility
- Fully enclosed safety design
- Adjustable conveyor width via hand crank
- Steel welded industrial frame construction
- Light tower for operator status indication
- Access panel for maintenance and service
- Aisle safety device (end-of-rail switch)
- Designed for reliable PCB transfer between production sections
- Ideal for SMT and electronics assembly lines
Applications
- SMT production lines
- PCB assembly lines
- Electronics manufacturing
- Automated board transfer between line segments
- Controlled operator aisle access within production environments
Condition
Used – Pulled from Working Environment
This equipment was removed from a fully operational production line. The system is complete and functional, with normal cosmetic wear consistent with industrial use. Equipment has been visually inspected and is ready for installation.
SKU: CONVEYOR-CTI-SG11-2006
Category: Conveyors / Board Handling
Brand: Conveyor Technologies
