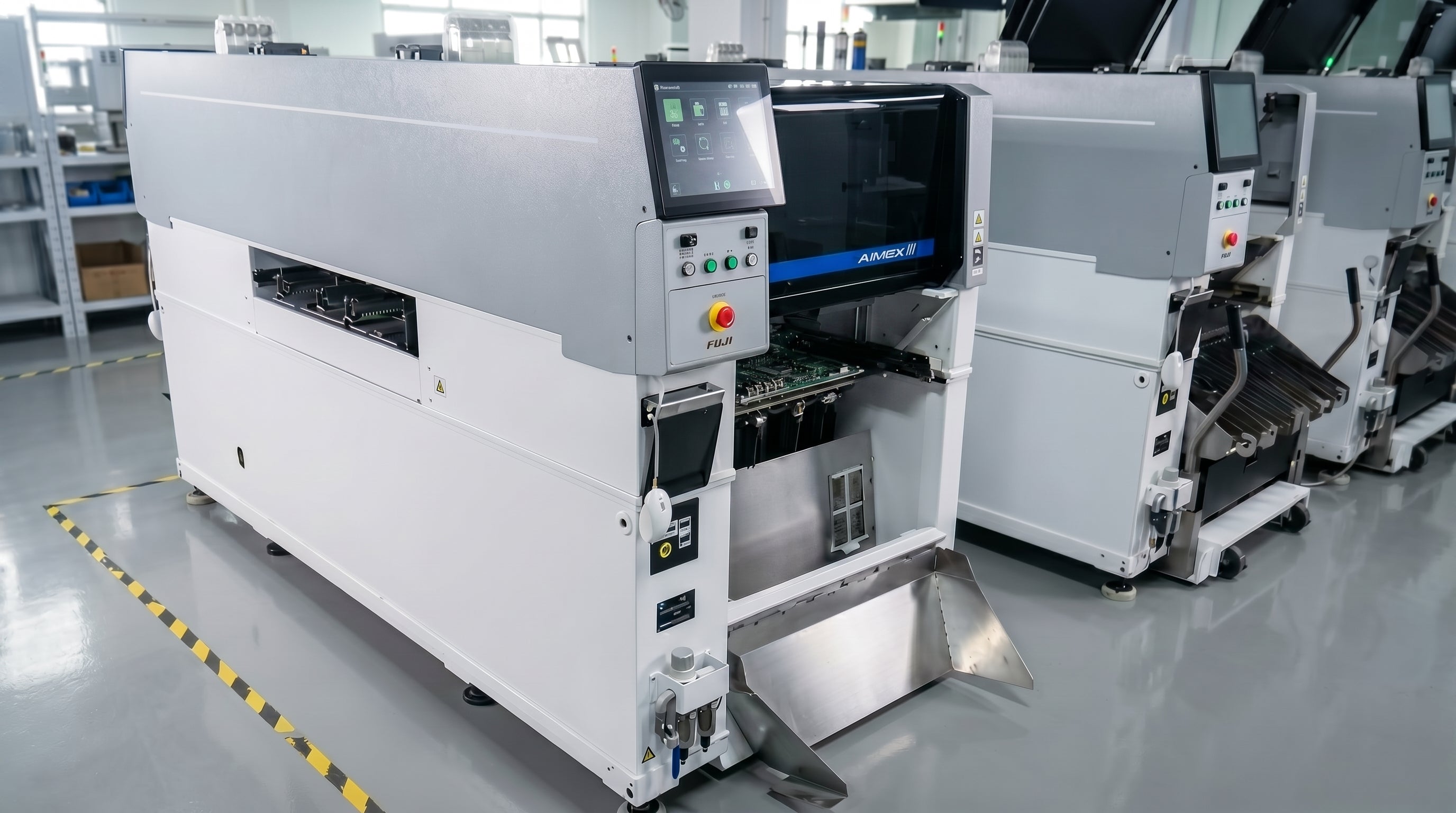

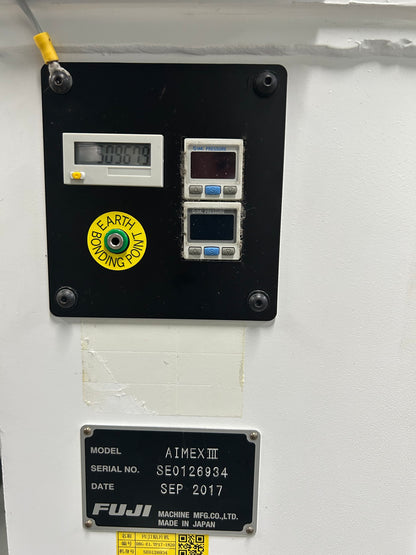

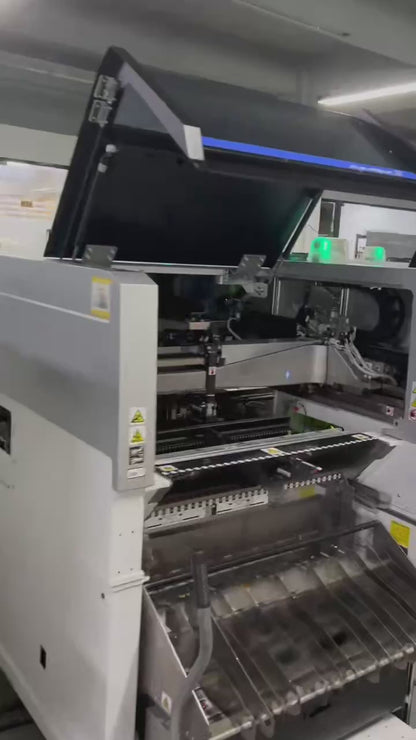

(4) 2017 FUJI AIMEX III Pick and Place Machines
(4) FUJI AIMEX III SMT Pick & Place systems, configured for high-mix, medium-to-high volume production environments including automotive, LED, industrial, and general electronics manufacturing.
The AIMEX platform is known for its flexibility, large board capability, and interchangeable head architecture, making it ideal for customers requiring both throughput and versatility in a single platform.
Key Specifications

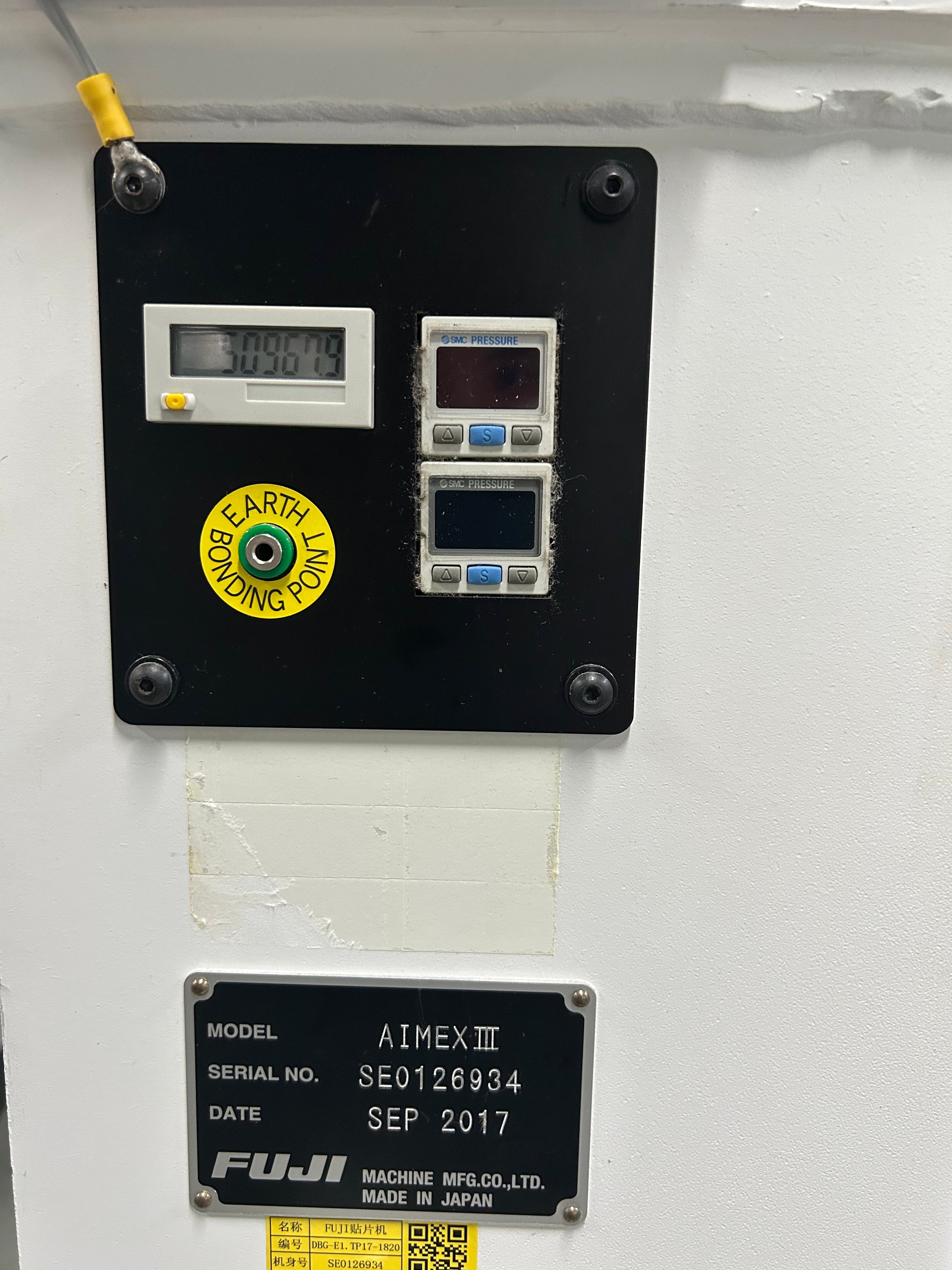

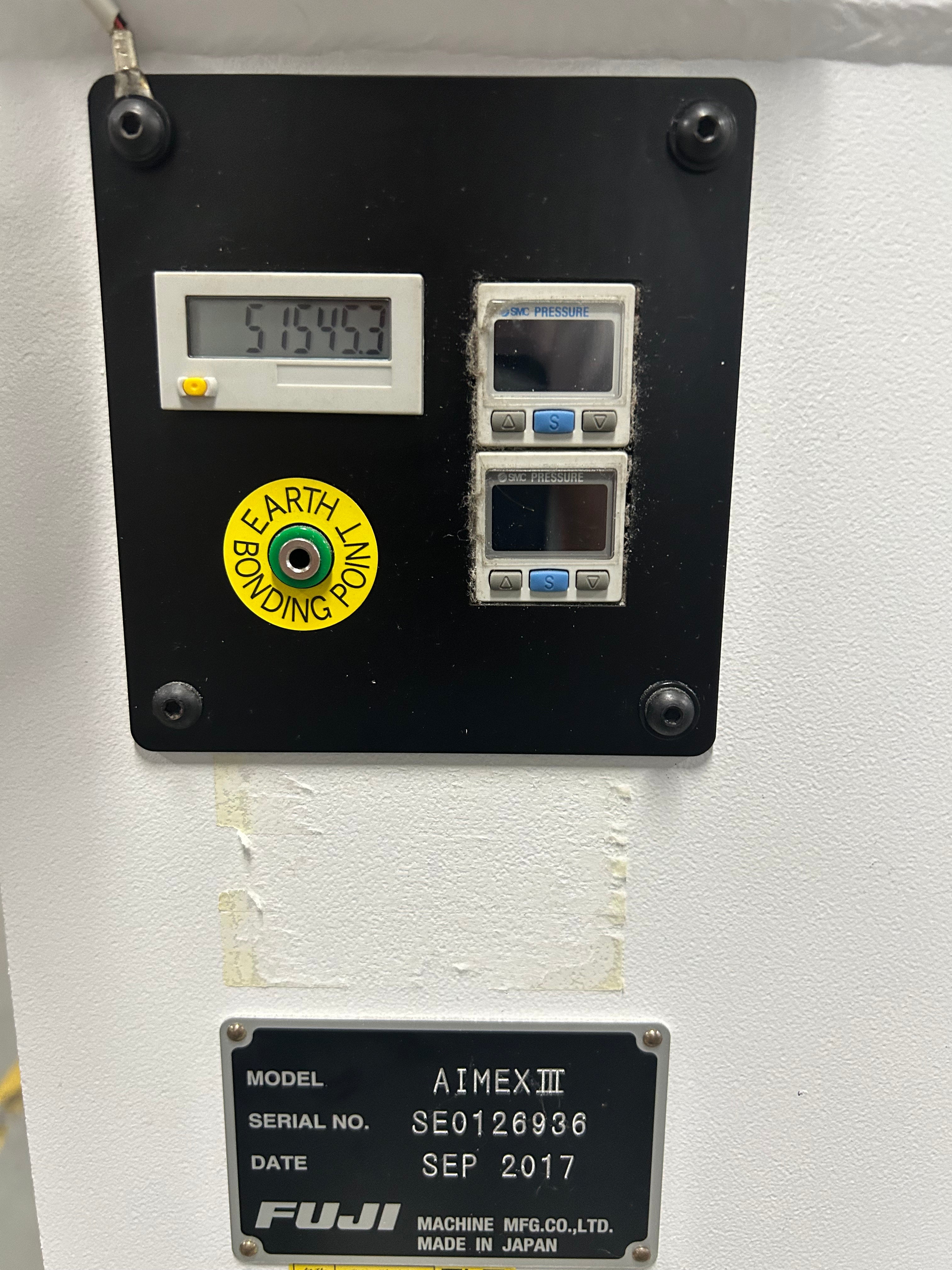

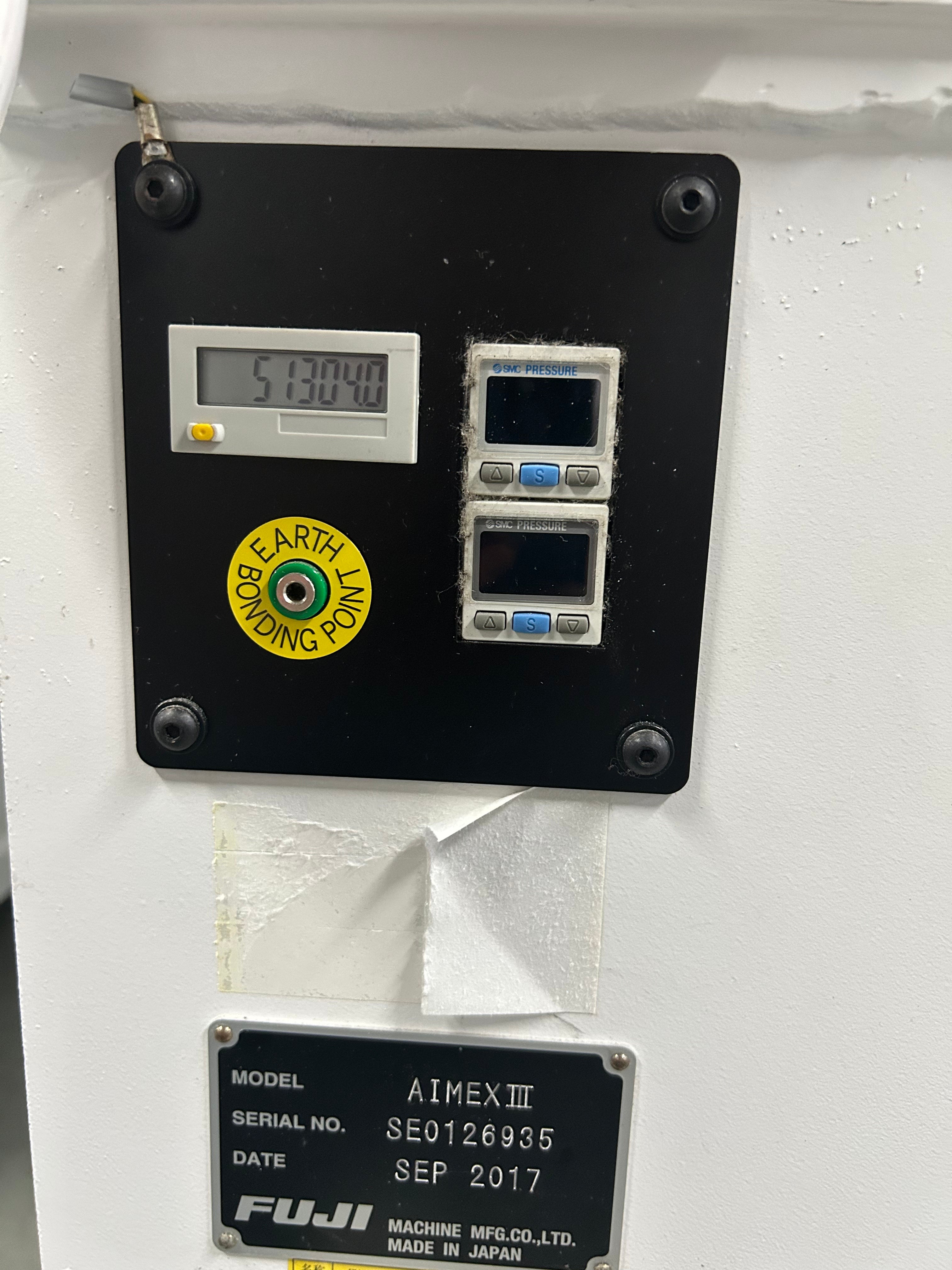

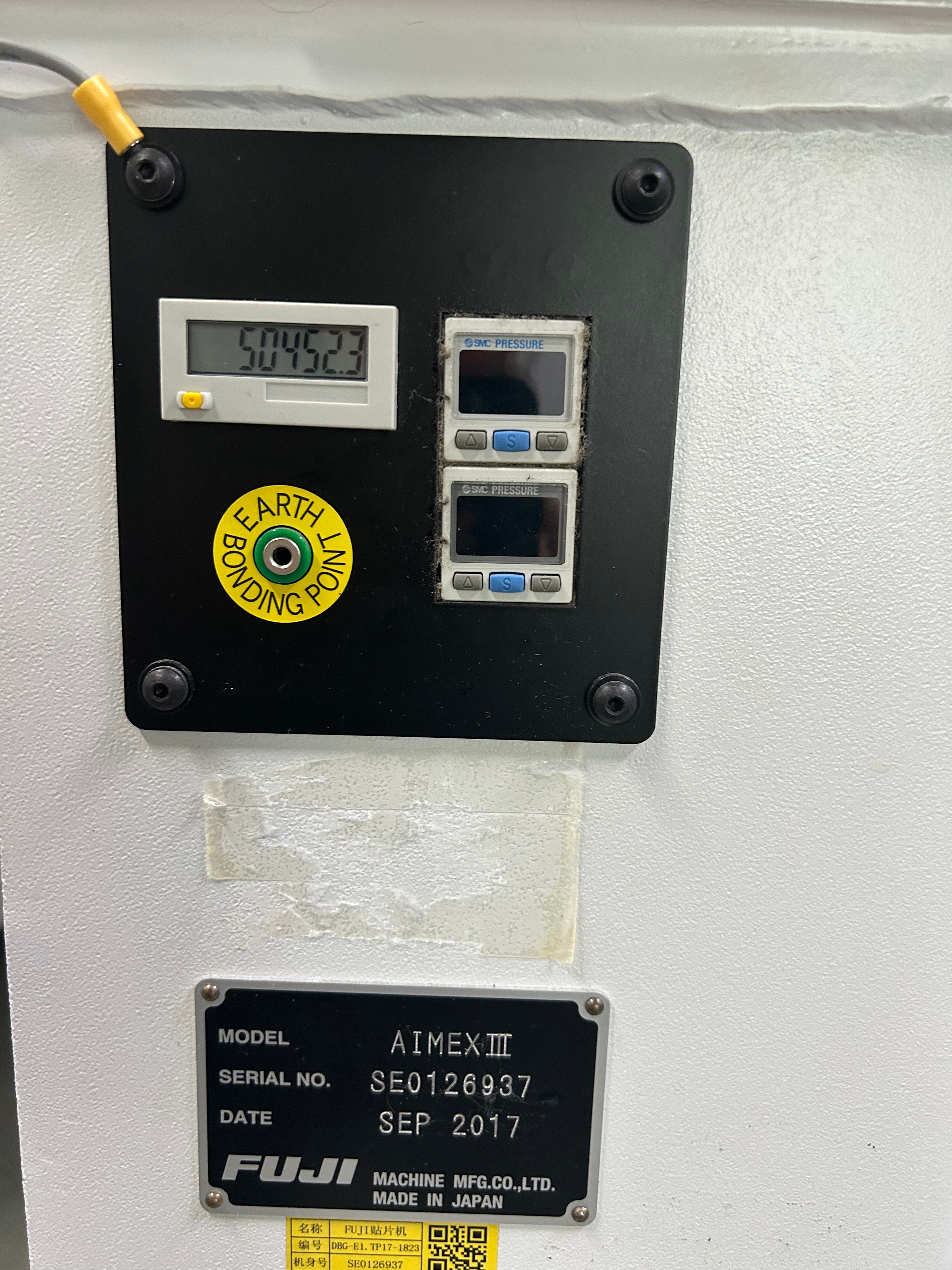

- Model: FUJI AIMEX III
- Quantity: 4 machines available

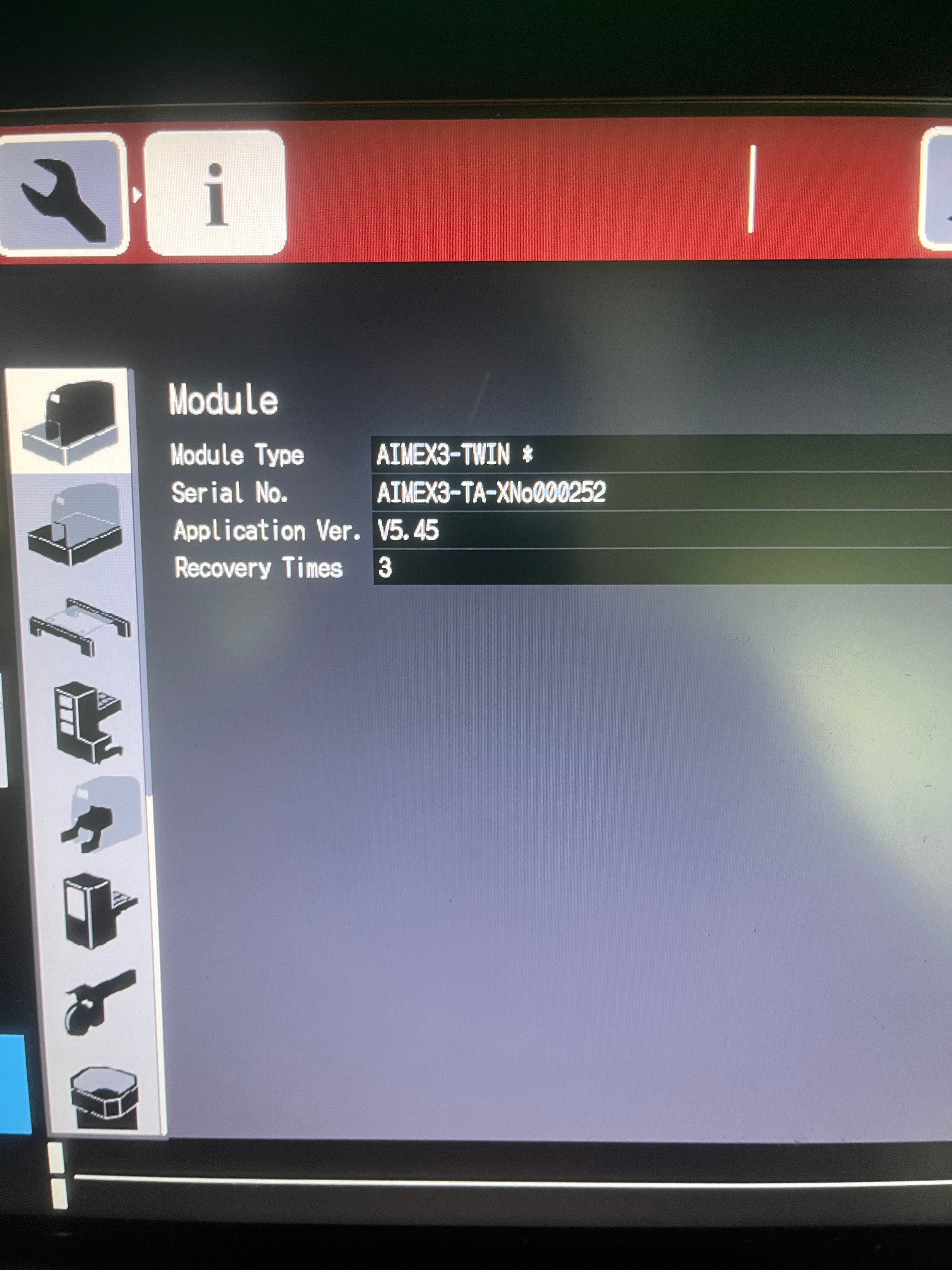

- Software Version: V5.45
- Configuration: Dual Lane capable (simultaneous PCB processing)
- Application: Mixed SMT production (LED, automotive, industrial, high-mix EMS)
- Component Range: Fine-pitch passives to large odd-form / LED packages
- Board Capability: Large-format PCB support
Head Configuration Options (Buyer Selectable)
These systems are being offered with multiple head configuration options, allowing customization based on production requirements:
Option 1 — High-Speed Configuration
2 × H24S Heads (42,000 CPH)
- Optimized for high-speed passive placement
- Ideal for 0603 / 0402 / dense resistor-capacitor boards
- Best suited for high-volume, low-mix production
Option 2 — Ultra-Fine / Chip + Flex Configuration
1 × H08M + 1 × H02F Head
- Designed for fine-pitch and small component placement
- Strong capability for 0402 and smaller components
- Suitable for precision electronics and dense PCB layouts
Option 3 — Flexible LED / Automotive Configuration
2 × V12 Heads (31,200 CPH)
- Multipurpose placement head for medium to large components
- Ideal for:
- LED packages (2835 / 3030 / 3535 / 5050)
- QFN / power components
- connectors and mixed assemblies
- Best choice for:
- Automotive electronics
- LED module production
- industrial assemblies
Option 4 — Maximum Flexibility Configuration
2 × DX Heads
- True multi-purpose head configuration
- Handles wide component range in a single pass
- Ideal for:
- High-mix production
- varying component sizes
- complex assemblies
- Reduces need for multiple machines in some applications
Key Advantages
1) Highly Flexible Platform
Supports multiple interchangeable head types, allowing the machine to adapt to:
- high-speed production
- LED assembly
- mixed component builds
2) Dual Lane Productivity
- Run two boards simultaneously
- Increase throughput without increasing footprint
3) Built for Versatile, Production-Ready Manufacturing
- Consistent placement performance across a wide component range
- Handles diverse board types and production requirements
- Proven platform for dependable, high-uptime operation
4) Scalable Line Configuration
With four machines available, systems can be configured as:
- Single high-capacity line
- Dual parallel lines
- Staged placement (passives + LEDs / power)
Typical Line Integration
These machines integrate seamlessly into standard SMT lines:
Recommended Use Cases
- General SMT production and assembly
- High-mix and medium-to-high volume manufacturing
- Industrial and commercial electronics
- Automotive electronics and transportation systems
- LED, lighting, and power electronics applications
- Contract manufacturing (EMS) environments
Summary
These FUJI AIMEX III systems offer a rare combination of flexibility, scalability, and production capability, with configurable head options to match virtually any SMT application.
Whether the requirement is high-speed chip shooting, LED placement, or full mixed production, these machines can be configured accordingly.
