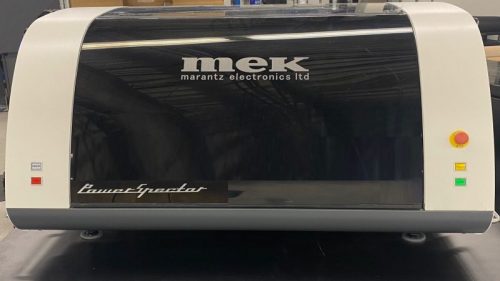

2018 MEK Marantz PowerSpector M22XGTAz-520 3D AOI
Call 603-594-4229 For Price
Make: MEK Marantz
Model: PowerSpector M22XGTAz-520
Vintage: 12/2018
Description: Benchtop 3D Automated Optical Inspection System
Details:
- Direct Loading
- Max PCB Size: 520mm
- Orca Chassis

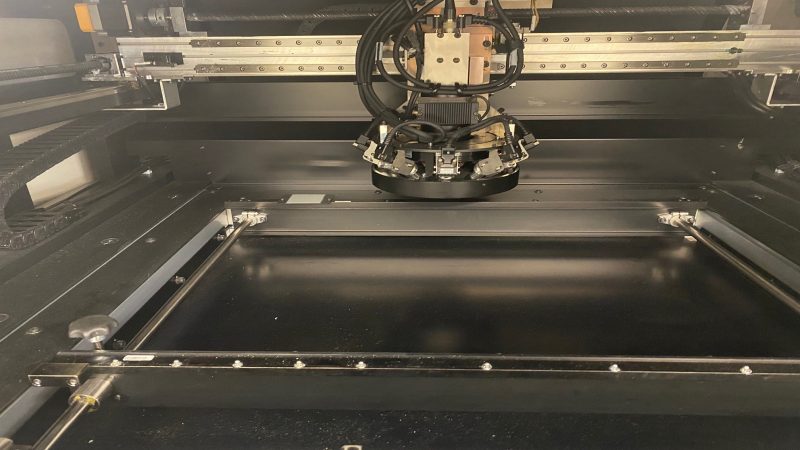

- (9) Total Cameras: 1 – 4Mp, 24bit CAM with 18.75u High Grade TC Lens Top Down / 8 – USB3 Vision Multiplex Side Cameras with 10u TS Lens
- 30mm Z-Axis
- Clearance +30/-60mm
- Integrated Grabber & Thunder Bolt Interface
- 4-Angle Coax/W/R/W LED
- Catch CSCL (Center Light) – Interfaces with AOI to Windows Platforms
- CSRL Catch Light Repair and Classification
Condition: Complete & Operational
Location: USA / FOB Origin
Availability: Immediate for purchase / 1-4 weeks for shipping
