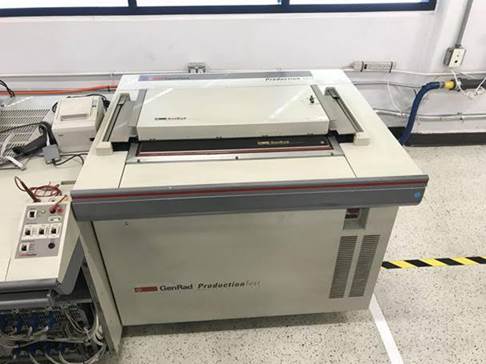

GenRad 2287L In-Circuit Tester

Make:  GenRad

Model:  2287L

Configuration:

TARGET                2287L

SYS_TYPE             2287LSYS

SYS_ACCESSORY_SLOTS  0

SYS_NAME          HP

CPU_TYPE           PC

OS_TYPE                             XP

8X_SW_VERSION              R_5_8_0

RECEIVER_TYPE BED_OF_NAILS

PINS

               HDC1     1-28       (max nail = 7424)

DIG_CONTROL

               HSC                       1             SLOT      1

               REF_PIO                              1             SLOT      3

               DSM                      1             SLOT      32           MEMORY             8MB

CST

               CST20                   1             SLOT      2

POWER

               PS                          1             VOLTAGE             20.00     CURRENT            8.00       SLOT      2

               PS                          2             VOLTAGE             20.00     CURRENT            8.00       SLOT      3

               PS                          3             VOLTAGE             20.00     CURRENT            8.00       SLOT      8

               PS                          4             VOLTAGE             60.00     CURRENT            2.50       SLOT      9

               PS                          5             VOLTAGE             60.00     CURRENT            2.50       SLOT      10

               PS                          7             VOLTAGE             7.00       CURRENT            15.00     SLOT      1

               PS                          8             VOLTAGE             60.00     CURRENT            5.00       SLOT      4               SLOT      5

               PS                          9             VOLTAGE             7.00       CURRENT            15.00     SLOT      11

               PS                          10           VOLTAGE             60.00     CURRENT            5.00       SLOT      6               SLOT      7

ANALOG

               ICA                        1

               HV_SRC                1

FUNCTIONAL

               AFTM                    1             SLOT      33

IEEE

               IEEE_NI                1

MISC

               MTG                     1             SLOT      0

Condition:  Complete & Operational

Make:  Teradyne

Model: Test Station 124LX

Operating System:  Windows XP

Software Version:  R.6.4.0

Configuration:

• Pins – Ultra124LX  1-28 (max nail = 7424)
• Total Available Nails = 7168
• 1- HSC
• 1- PIO
• 1- UltraCST
• 4- PS – Voltage: 20v – Current-8.00
• 2- PS – Voltage 60v – Current -2.50
• 1- PS – Voltage 7v – Current – 30.00
• 1- PS – Voltage 7v – Current – 15.00
• 1- PS – Voltage 12 – Current 2.50
• 1- AFTM
• 1- IEEE
• 1 – MTG

Condition: Complete & Operational
