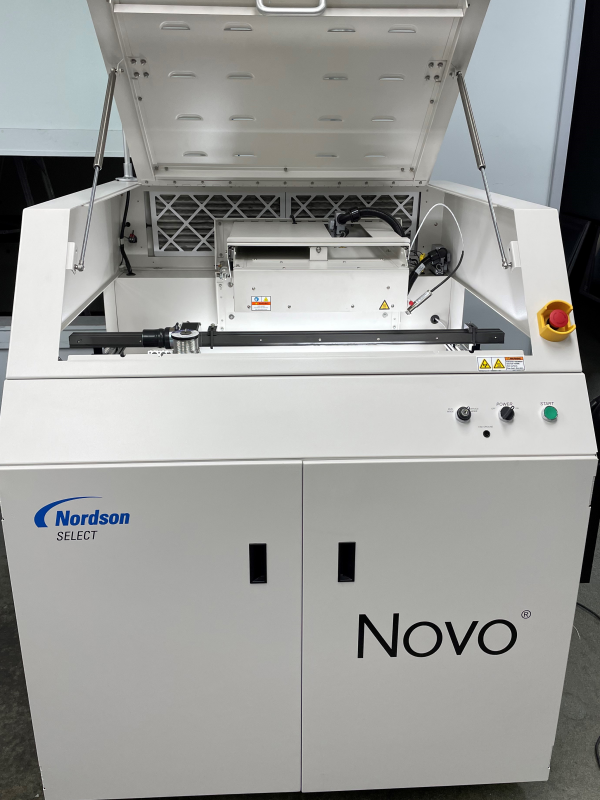

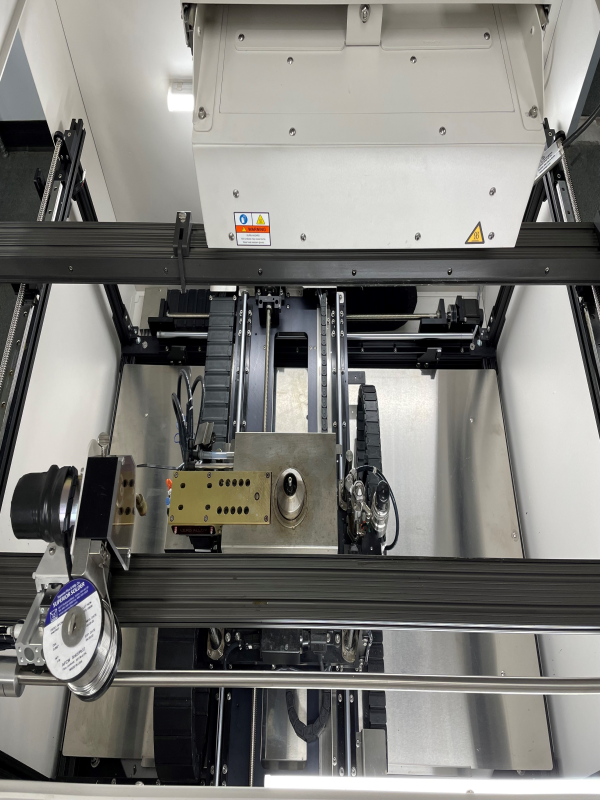

2020 Nordson Select Novo 102 Selective Solder

Sold! This item was recently sold.  Please email our Sales Team at Sales@lewis-clark.com for additional equipment solutions, available now!

Make:  Nordson

Model:  Select Novo 102

Vintage:  2020

Description:  Selective Solder

Details:

• Lead-Free Titanium Solder Pot & Pump Assembly
• Solder Pot Capacity: 30 lbs
• Software: SWAK-OS 4.0 (Includes Automated Fiducial Alignment, Board Warp Compensation, On Board Help Videos, and Complete FIS Capability
• Windows PC
• Min Board Width: 2″ x 2″
• Max Board Width: 16″ x 16″
• Max Solder Temperature: 400°C (+\- 2°C)
• Universal PCB Location Rails with Motor Driven Adjustment and Multiple Board Stops
• High-Speed Z-Axis Motion
• Closed Loop Rotary Encoders
• Solder Alloy Verification System
• Heated Nitrogen Inerting System
• Dual Process Witness Cameras with Dual Monitors
• Programmable Solder Wave Flow Rate
• Programmable Solder Pot Timer
• Automatic Wave Height Monitoring and Adjust System
• Atomizing Spray Fluxer Applicator
• Integrated Topside On-Board IR Preheater
• FlexJet Precision Drop-Jet Dispenser
• Automated Nozzle Tinning Station
• Power: 208/220-240VAC, 60Hz, Single Phase, 30A
• SMEMA Compliance
