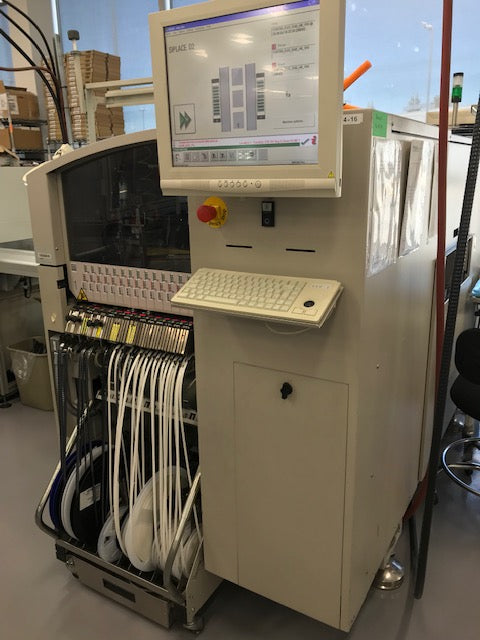

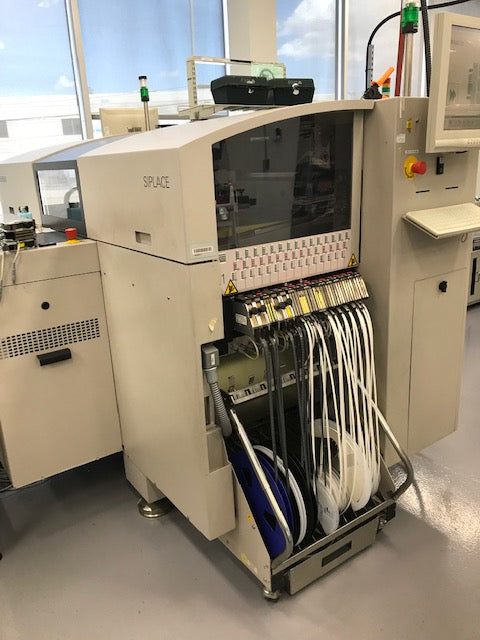

Siemens SIPLACE D2 Pick & Place Machine (2009)
Complete SMT Placement Solution with Offline Programming, Documentation, and OEM Nozzles
The Siemens SIPLACE D2 is a proven SMT pick & place platform designed for flexible, high-mix electronics manufacturing. Featuring dual rotary gantry placement heads, integrated vision systems, and offline programming capability, the machine delivers reliable placement performance for prototype, NPI, and production environments. This production-ready package includes original Siemens software, documentation, activated offline programming software, and OEM nozzles, making it an ideal solution for rapid deployment.
Key Highlights
• Dual Rotary Gantry Placement Architecture
• 24 Total Placement Nozzle Positions
• Offline Programming Workstation Included
• Activated Siemens Software Package
• Original Siemens Documentation & Licenses Included
• Type 28 & Type 29 Vision Camera System
• Upward-Looking Component Vision System
• Fiducial Recognition System Operational
• Regularly Maintained Production Machine
• OEM Nozzle Starter Package Included
• Large SIPLACE Feeder Inventory Available Separately
• Suitable for Prototype, NPI, and Production Environments
Technical Overview
• Manufacturer: Siemens
• Model: SIPLACE D2
• Year: 2009
• Machine Type: SMT Pick & Place Machine
• Condition: Production Operational
• Placement Architecture: Dual Rotary Gantry System
• Placement Heads: 2 Rotary Gantry Heads
• Nozzles per Gantry: 12
• Total Nozzle Positions: 24
Placement Head Configuration:
Dual Rotary Gantry System
• 2 High-Speed Rotary Placement Heads
• 12 Nozzle Positions per Gantry
• 24 Total Placement Positions
• Supports Flexible SMT Component Placement
• Designed for High-Mix Manufacturing Applications
Vision System:
Installed Vision Package
Gantry 1
• Type 28 Camera
• 24.2 mm × 24.2 mm Field of View
Gantry 2
• Type 29 Camera
• 32 mm × 32 mm Field of View
Verified Functions
• Upward-Looking Camera Operational
• Component Vision System Functional
• Fiducial Recognition Operational
• Machine Currently Running in Production
Software & Documentation:
Complete Siemens Software Package
• Original Siemens Software Included
• Software Installation CD-ROMs Included
• Software Licenses & Certificates Included
• Original Siemens Manuals Included
• Maintenance Documentation Included
• Tool Box Included
• Offline Programming Workstation Included
Offline Programming Station:
Ready-to-Use Programming Environment
• Acer Desktop Computer Included
• Siemens Software Installed & Activated
• Supports Offline Program Creation
• Production Setup & Optimization Capability
• Ready for Immediate Use
Maintenance History:
Professionally Maintained Equipment
• Monthly Preventive Maintenance Performed
• Maintained in Clean Operating Condition
• Siemens Engineer Service Approximately 3 Times Per Year
• No Known Operational Issues Reported
• Active Production Machine
Included Nozzles:
OEM Siemens Nozzle Package
• Type 921 — 2 pcs
• Type 956 — 2 pcs
• Type 934 — 2 pcs
• Type 906 — 2 pcs
• Type 901 — 2 pcs
• Type 904 — 2 pcs
• Type 735 — 2 pcs
• Type 739 — 2 pcs
• Total Included: 16 OEM Nozzles
• Additional Nozzles Available Separately
Air System Status:
Verified Operational Condition
• Air Alarm Shown During Maintenance Only
• Facility Compressor Was Offline During Photography
• No Known Air System Faults Reported
• Air Supply Functions Normally
• Alarm Clears When Compressed Air Is Supplied
Production Benefits
• Supports High-Mix SMT Manufacturing
• Reduces Setup Time Through Offline Programming
• Proven SIPLACE Reliability and Performance
• Flexible Placement Capability Across Component Types
• Comprehensive Software and Documentation Package
• Rapid Deployment Into Existing SMT Production Lines
Ideal Applications
• EMS & Contract Manufacturing
• Industrial Electronics Production
• Aerospace & Defense Electronics
• Medical Electronics Manufacturing
• Automotive Electronics Assembly
• High-Mix / Low-Volume Production
• Prototype Builds and NPI Development
Machine Condition & Availability
• Currently Operating in Production
• Good Working Condition
• Regularly Maintained Throughout Service Life
• Complete Software & Documentation Package Included
• Offline Programming Station Included
• OEM Nozzle Package Included
• Large SIPLACE Feeder Inventory Available Separately
• Ready for Immediate Production Deployment
